Products

10mm Heavy-Duty PVC Floor Tile Ramps & Corners | Multiple Colours | Vehicle Safe | UK Stock

10mm Heavy-Duty PVC Floor Tile Ramps & Corners | Multiple Colours | Vehicle Safe | UK Stock

(122)

From £15.90

Professional Edge Finishing for Interlocking Floor Systems

Complete your interlocking floor installation with professional-grade ramp and corner pieces. These 10mm PVC edge trims create smooth transitions between your floor tiles and existing surfaces, eliminating trip hazards and providing a clean, finished appearance suitable for commercial and industrial environments.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

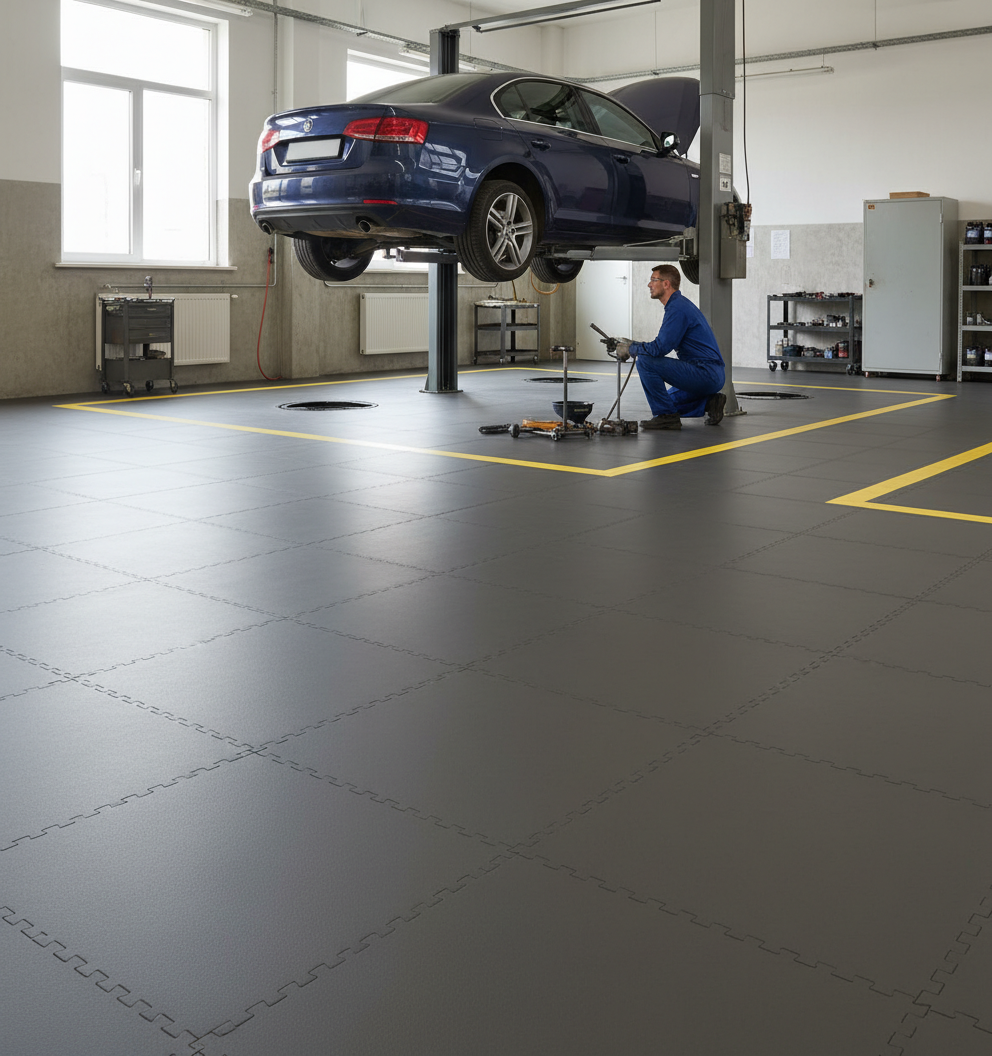

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

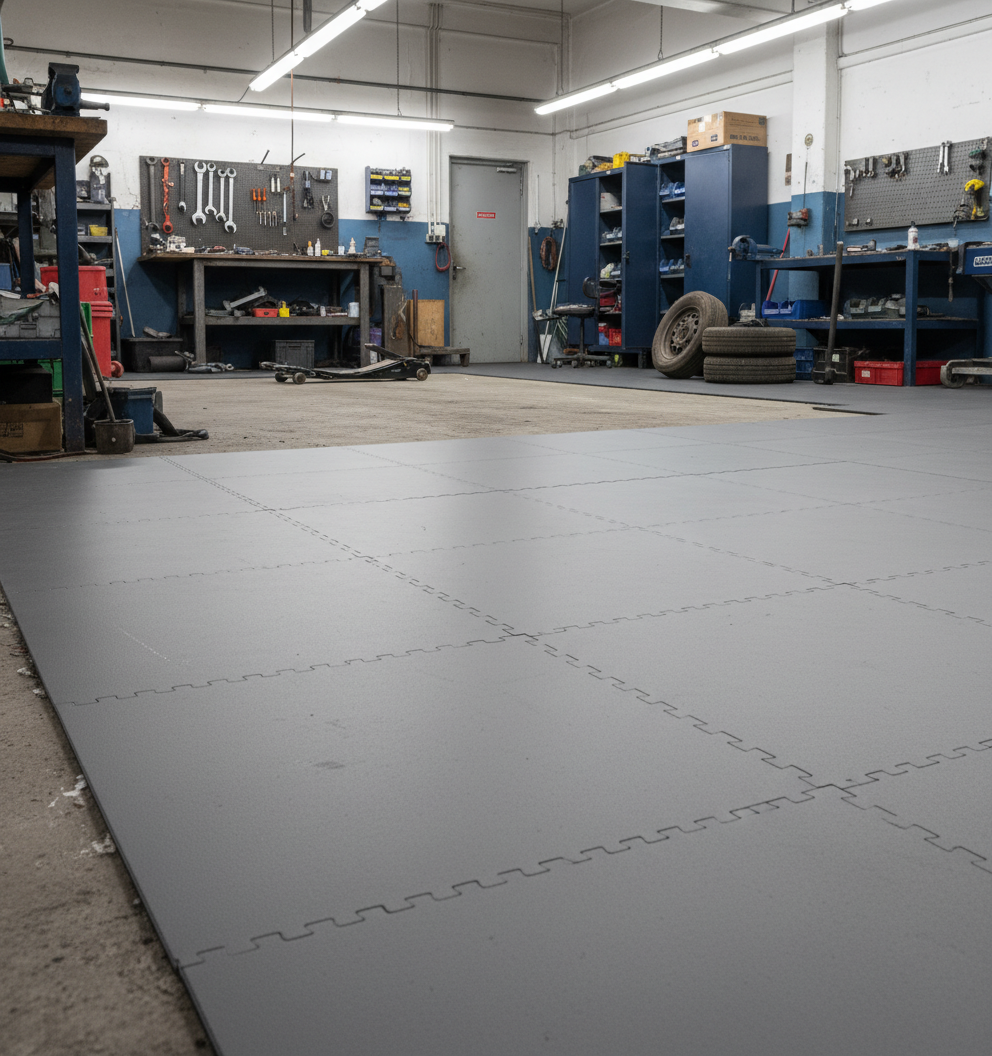

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.

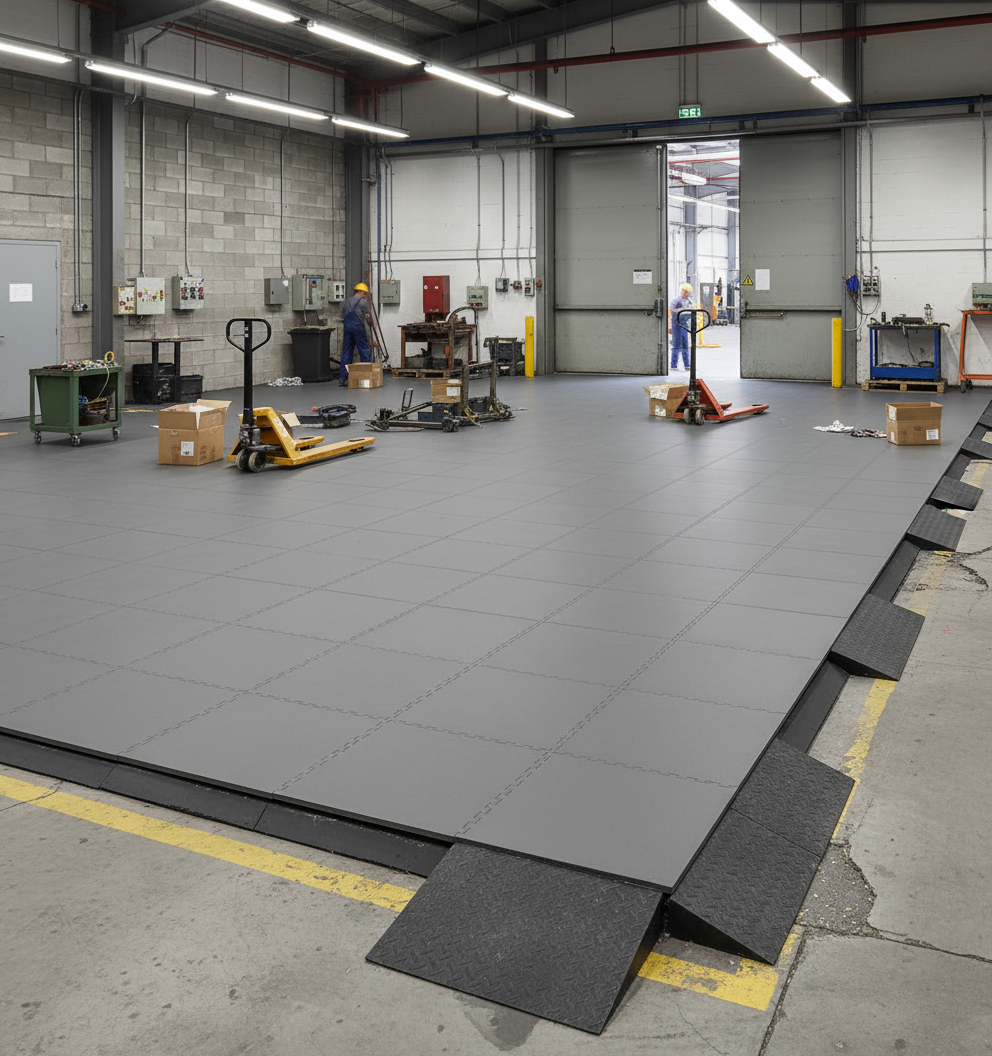

Edge Finishing: Install ramp edges for smooth transitions where required.

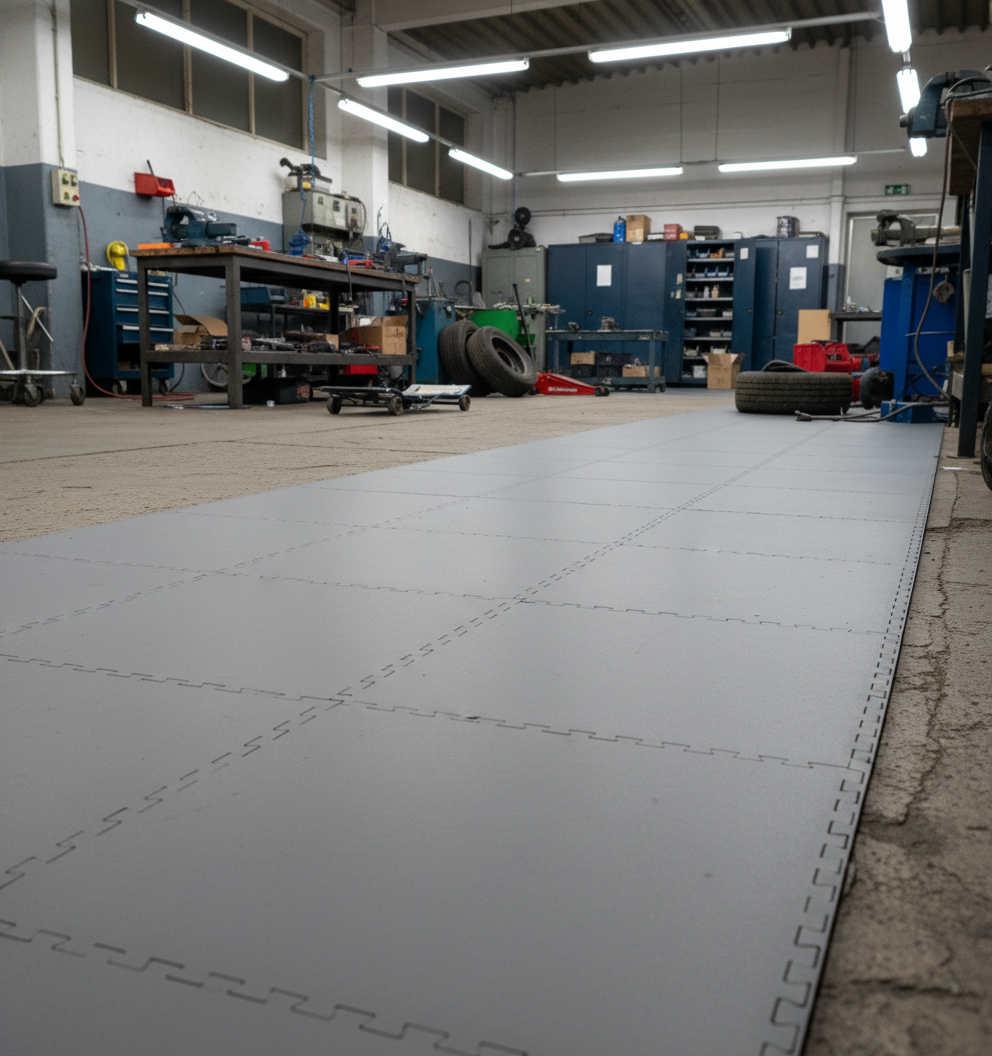

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 �� the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

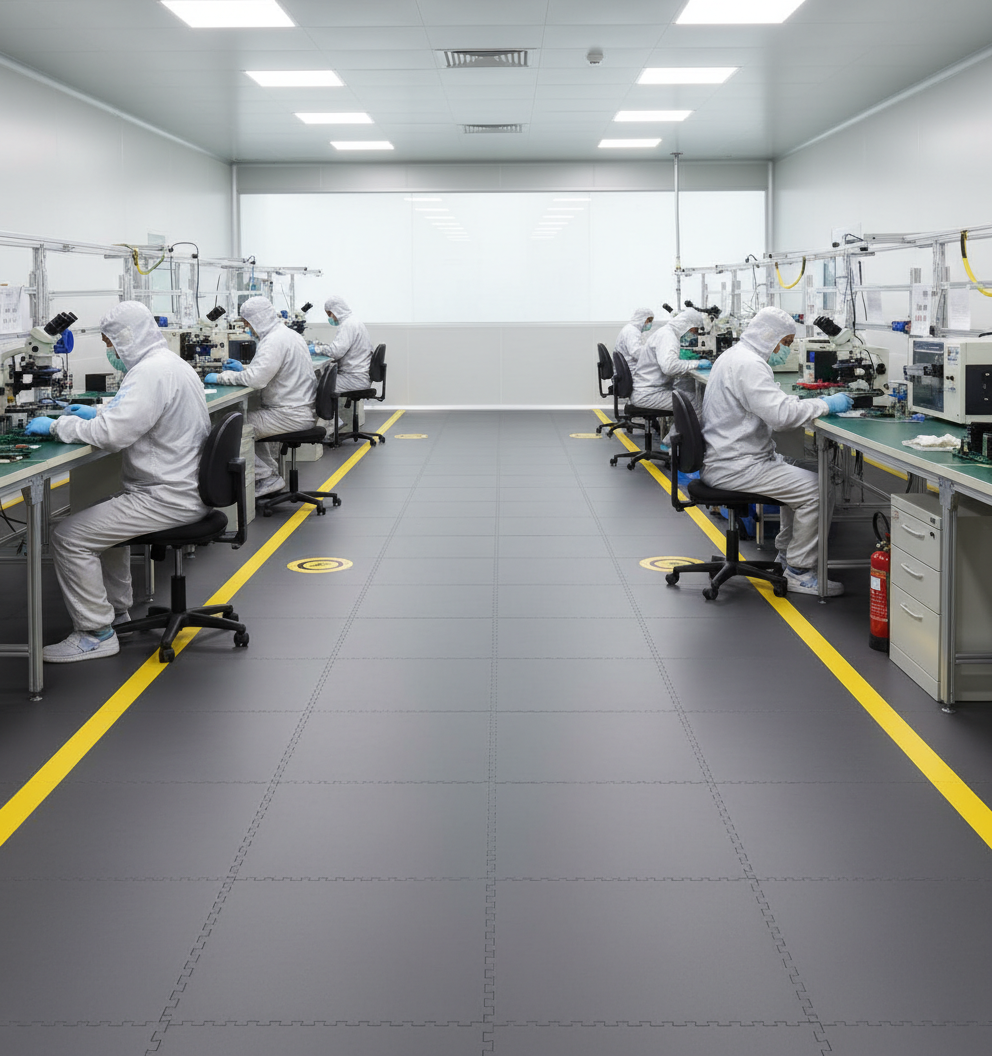

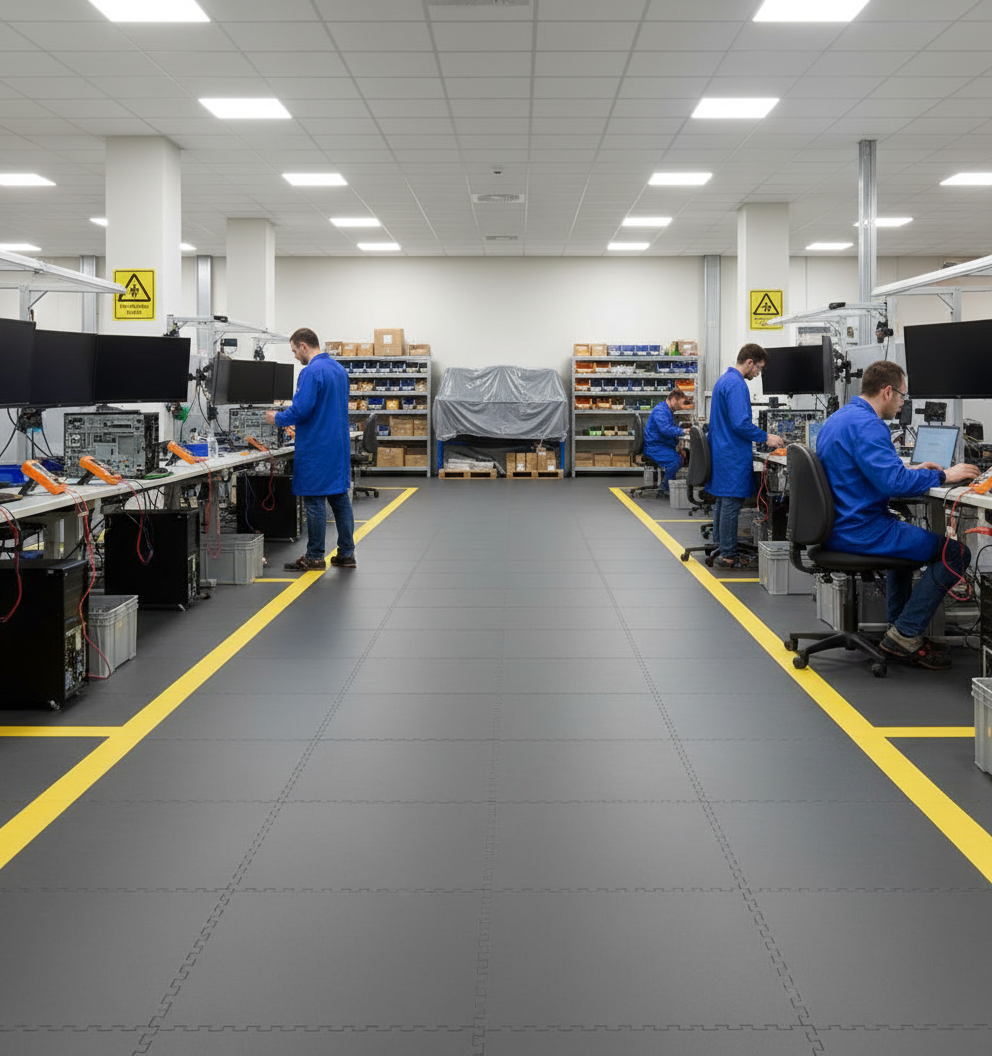

Industrial and commercial: These tiles are specifically engineered for the demands of industrial and commercial environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

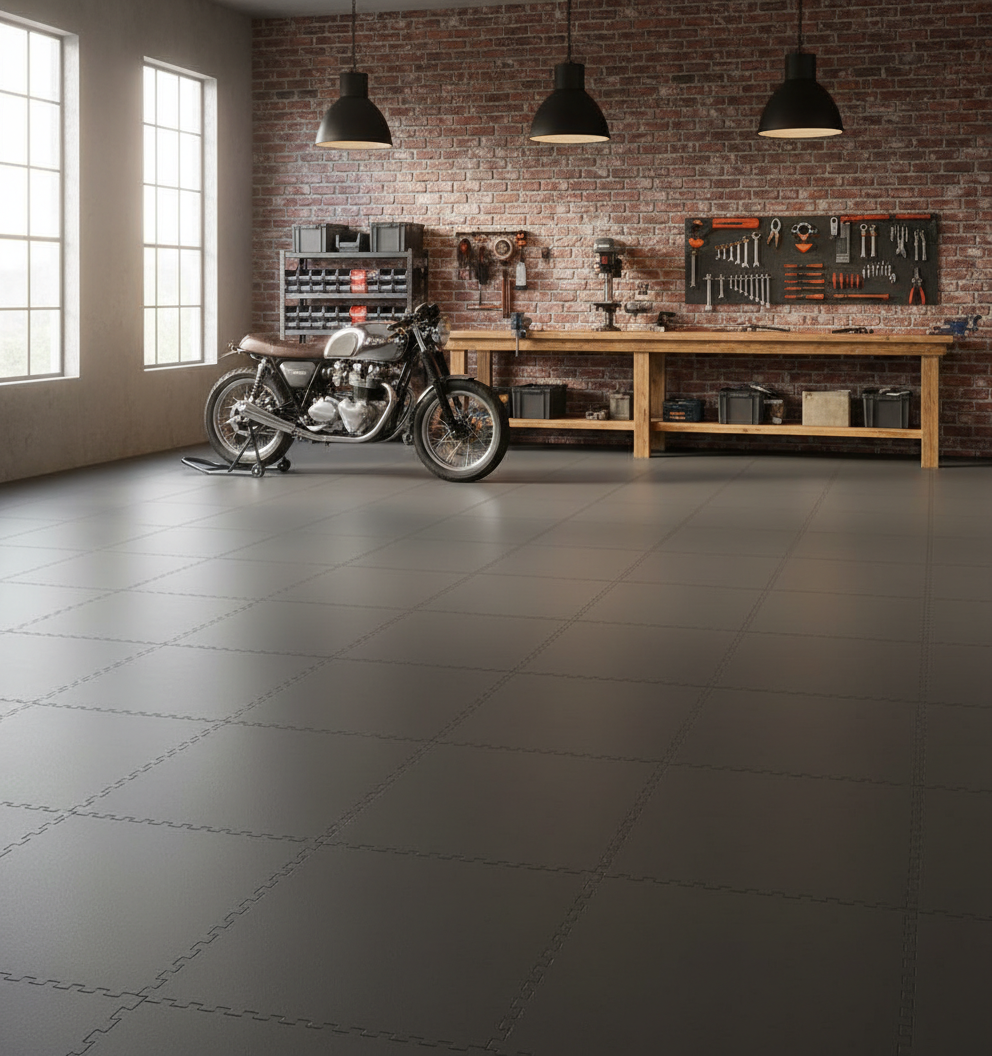

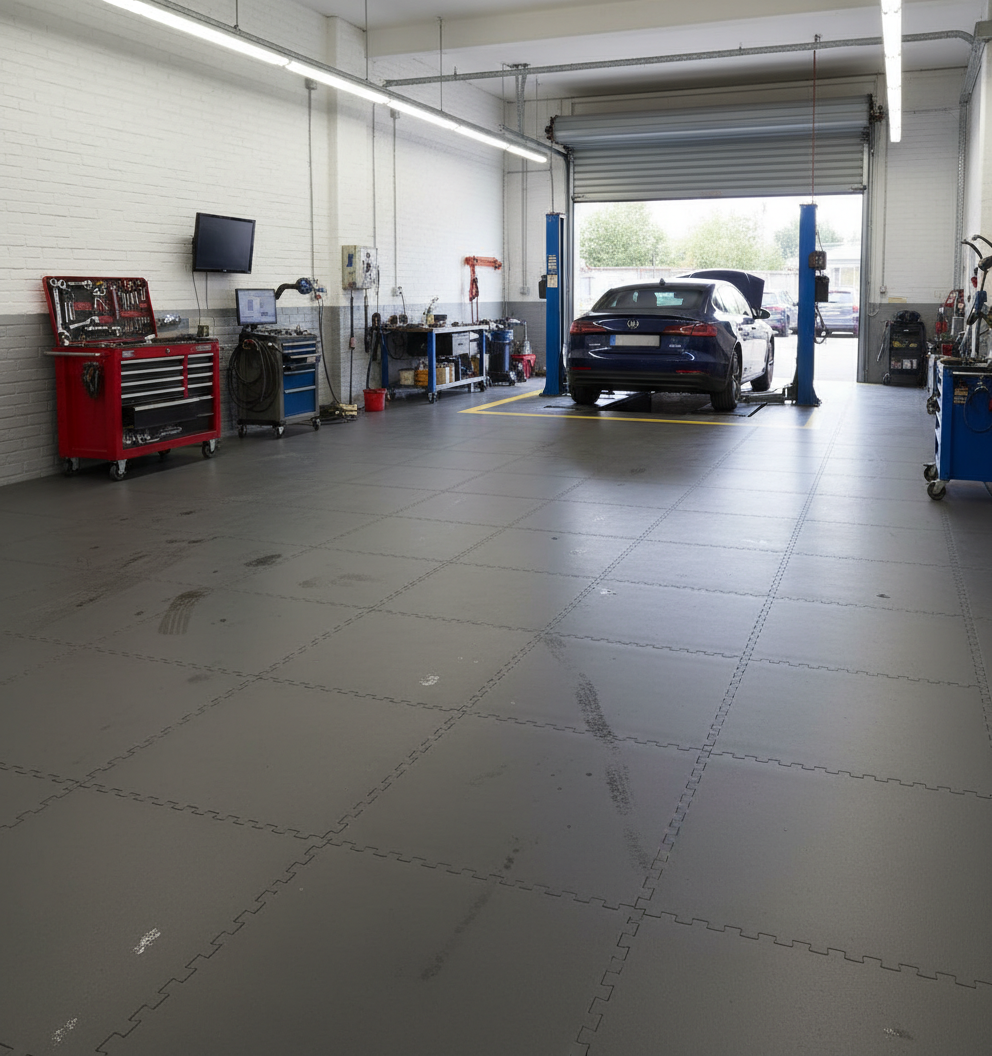

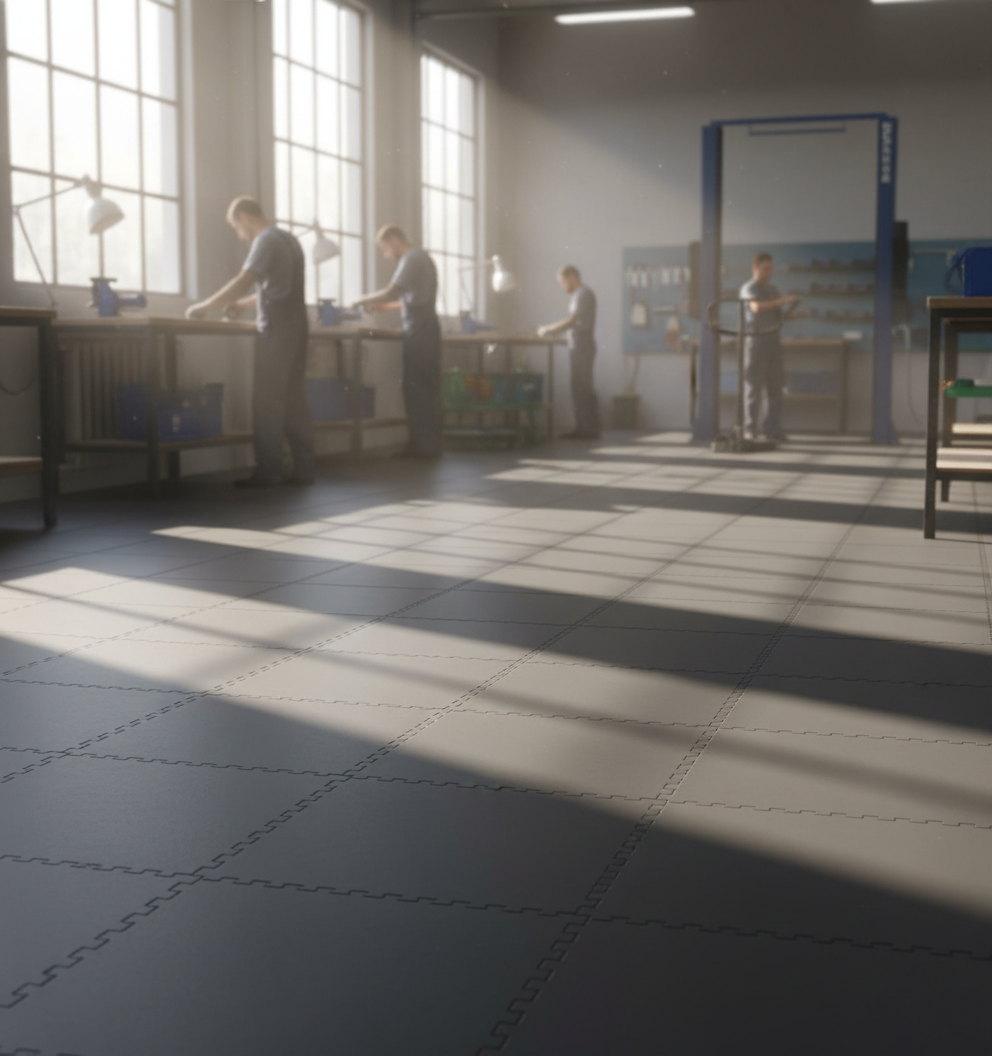

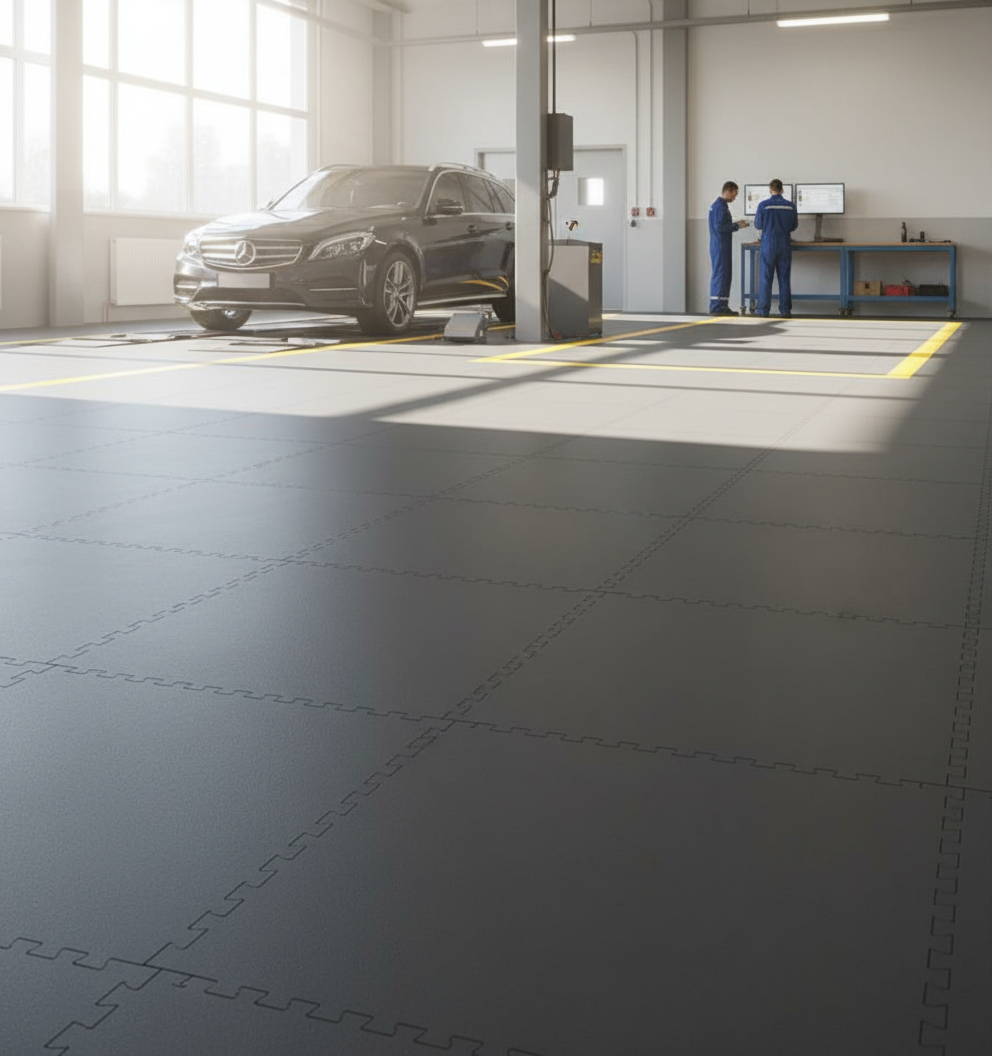

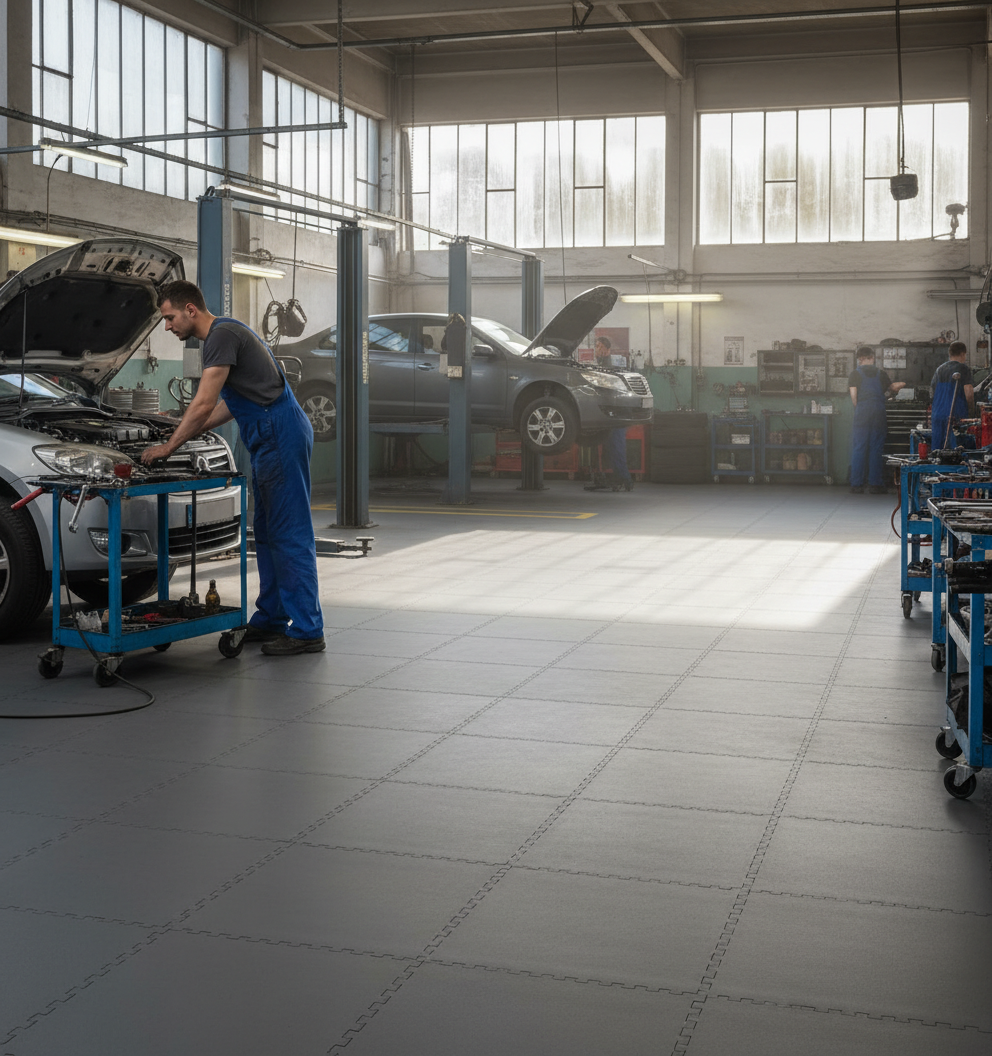

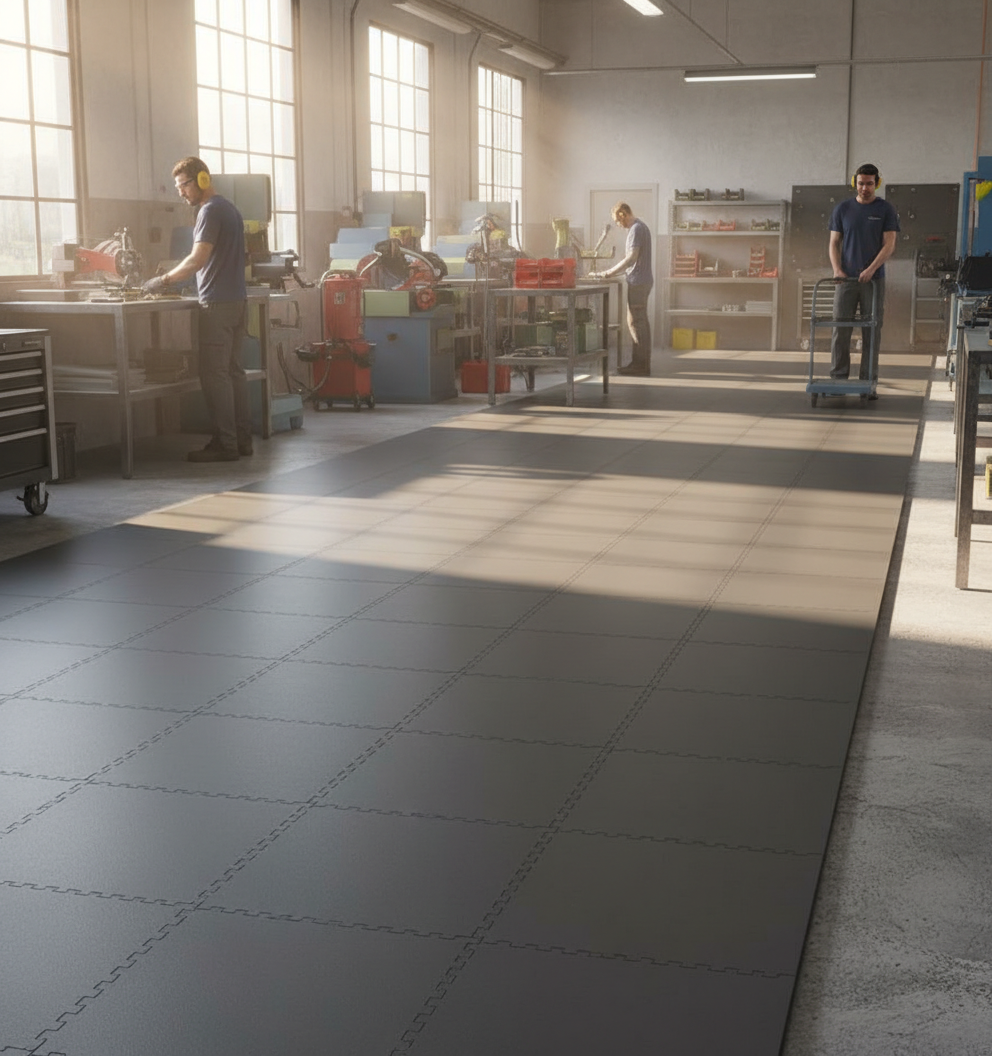

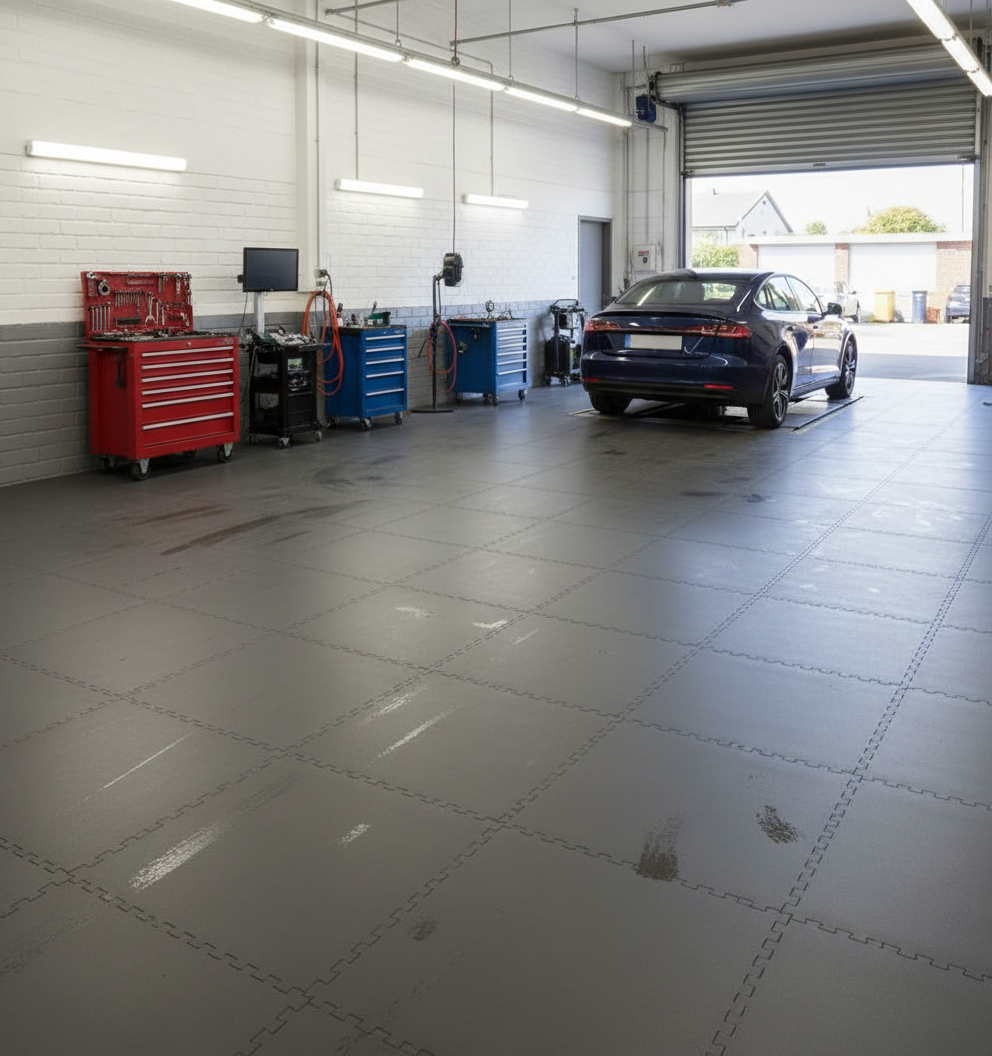

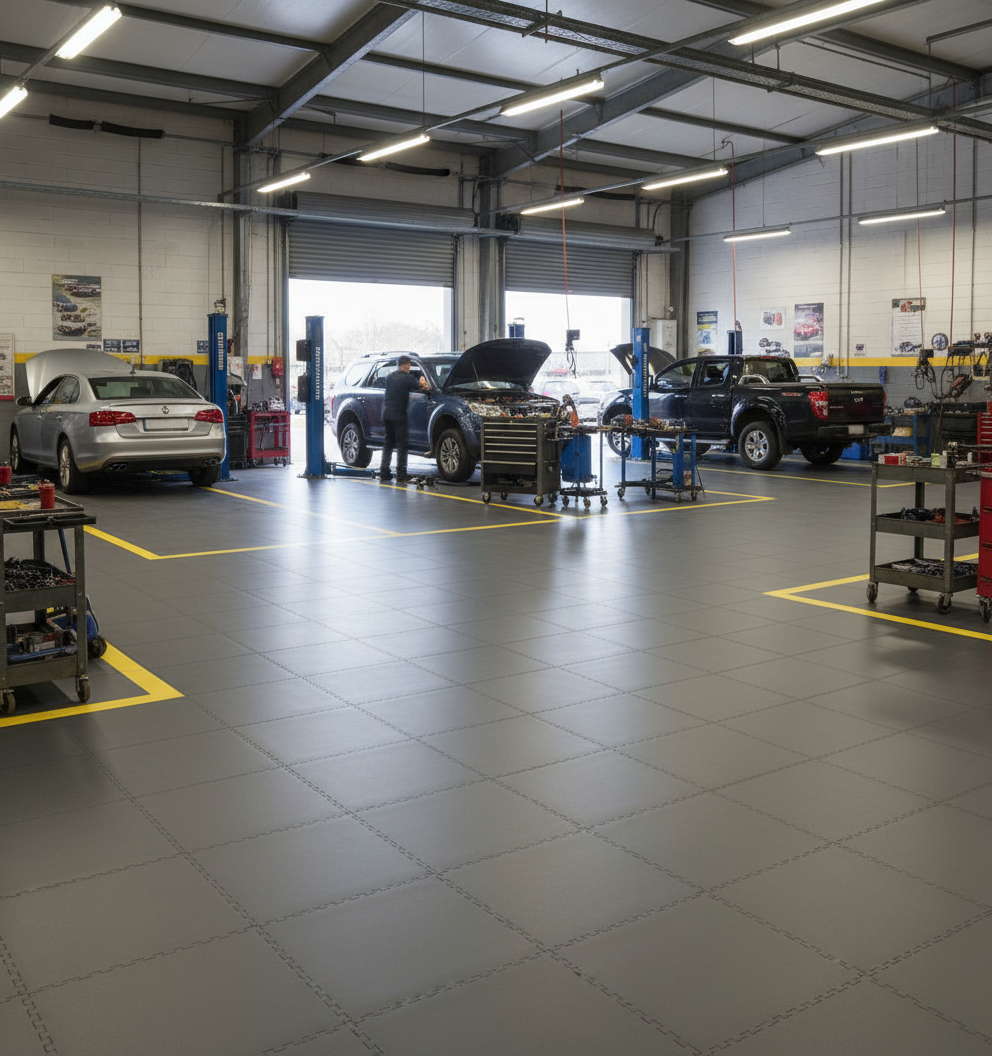

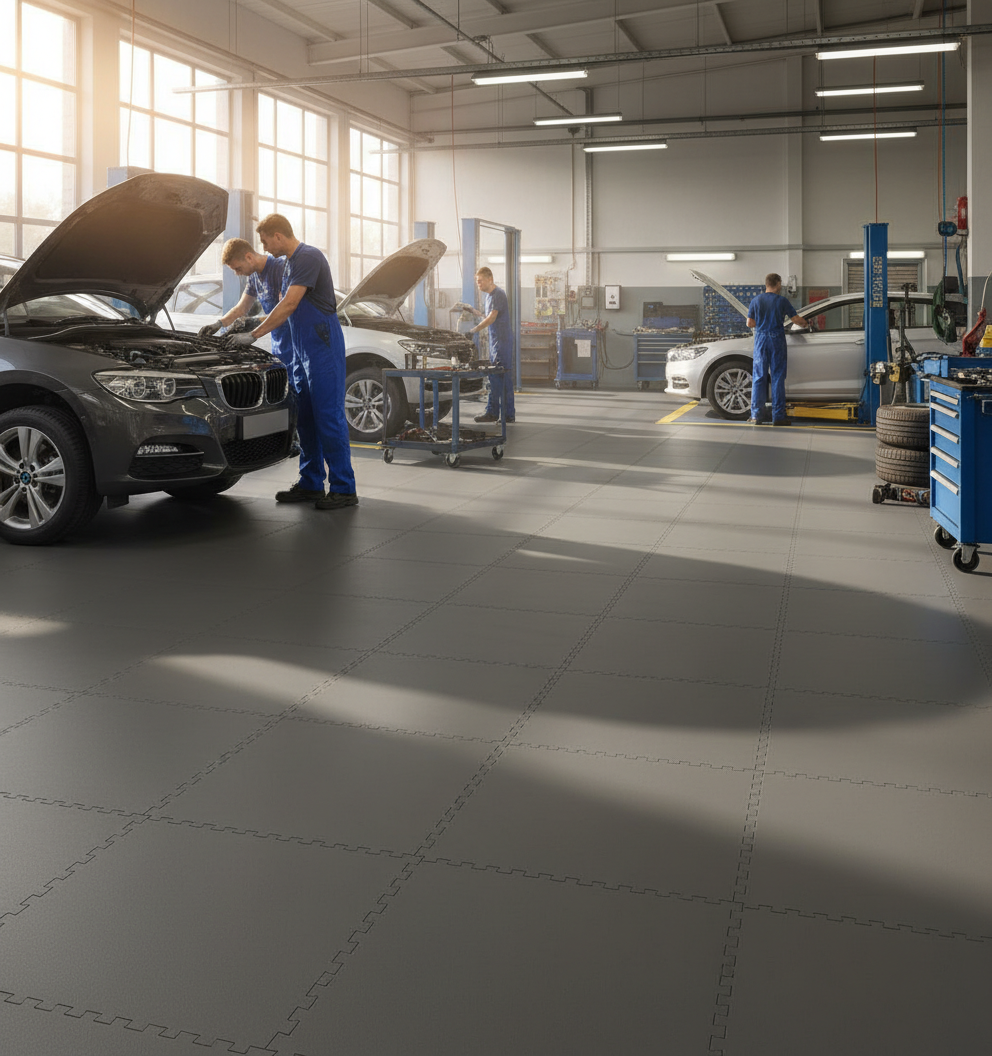

Commercial garages and workshops

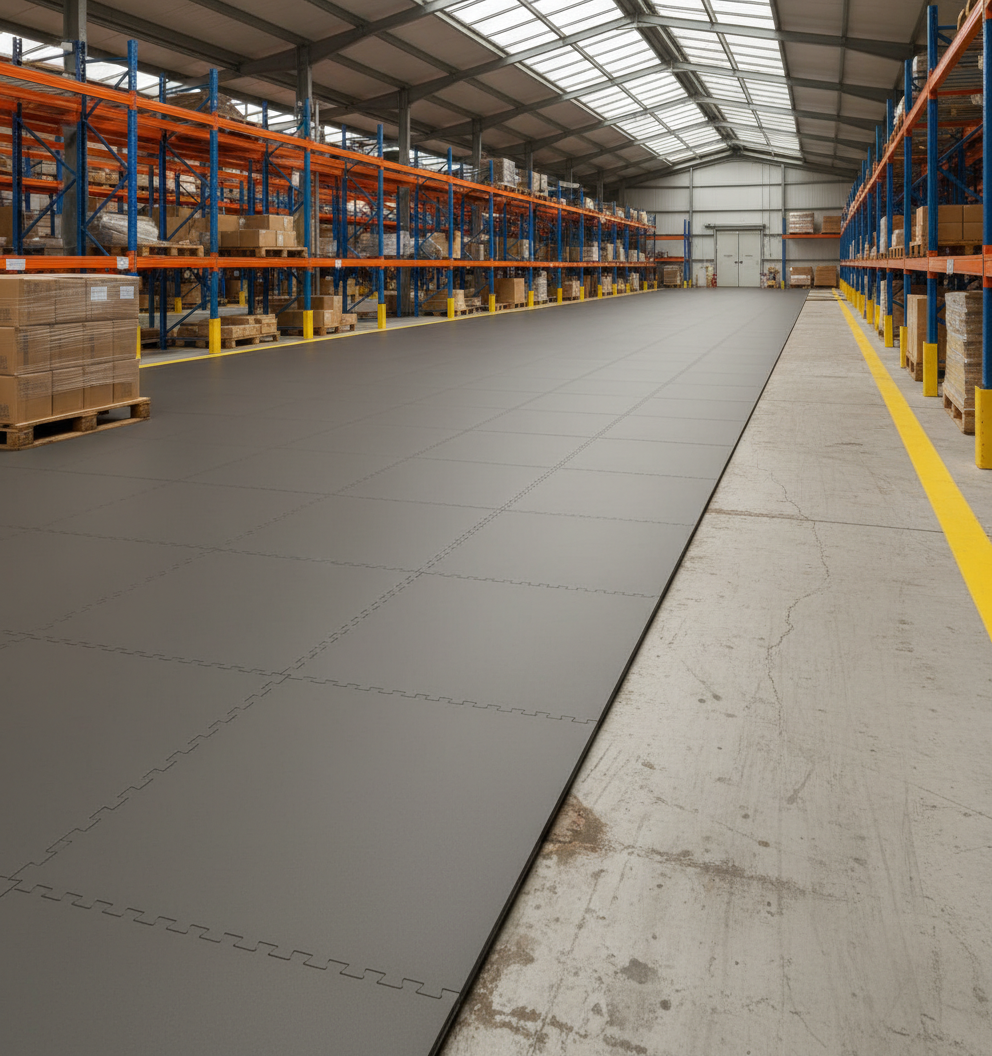

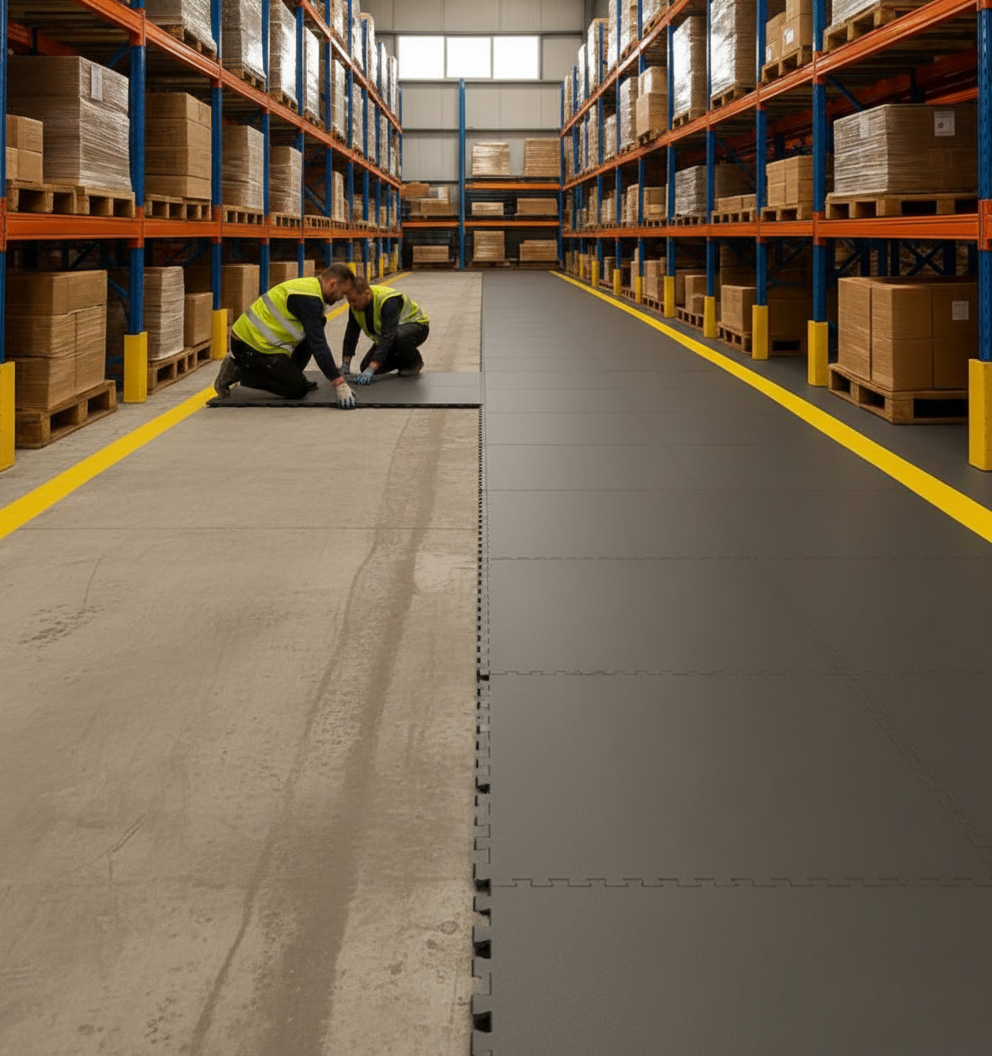

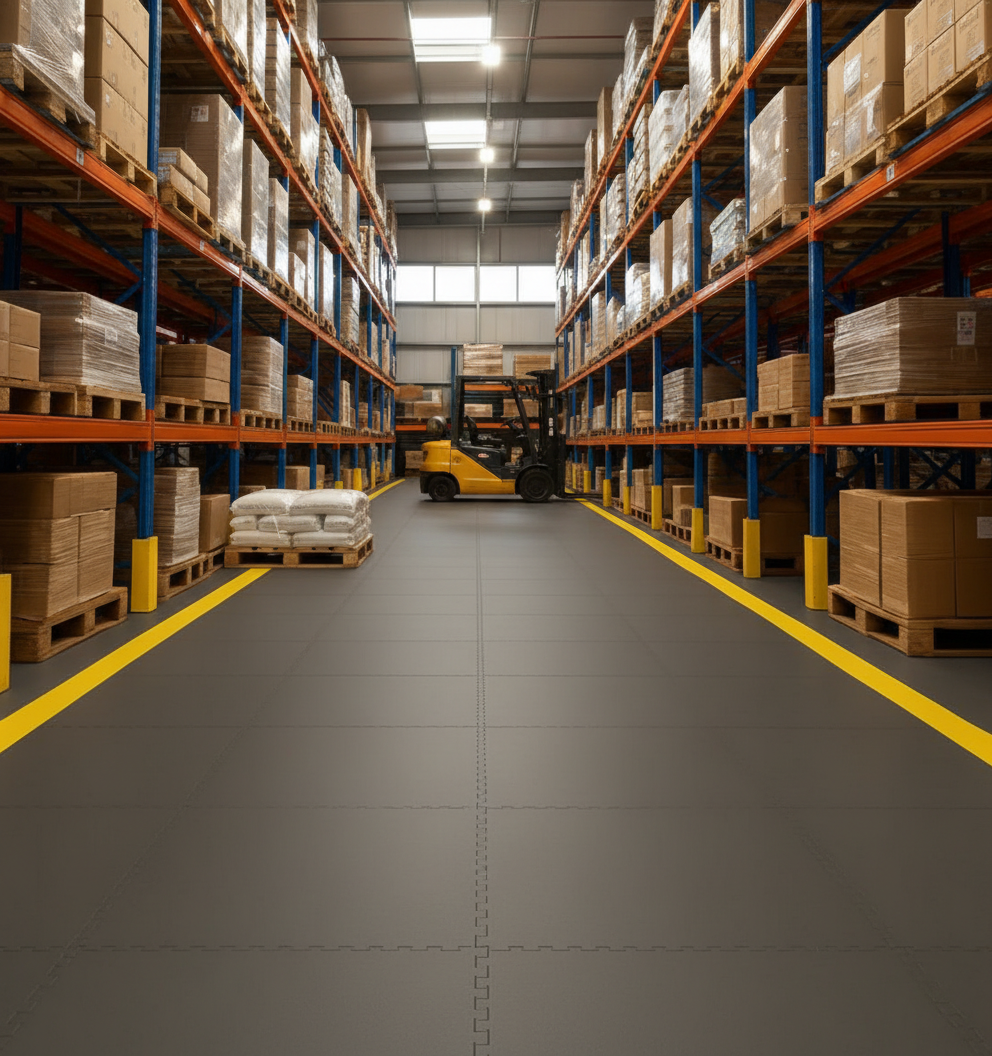

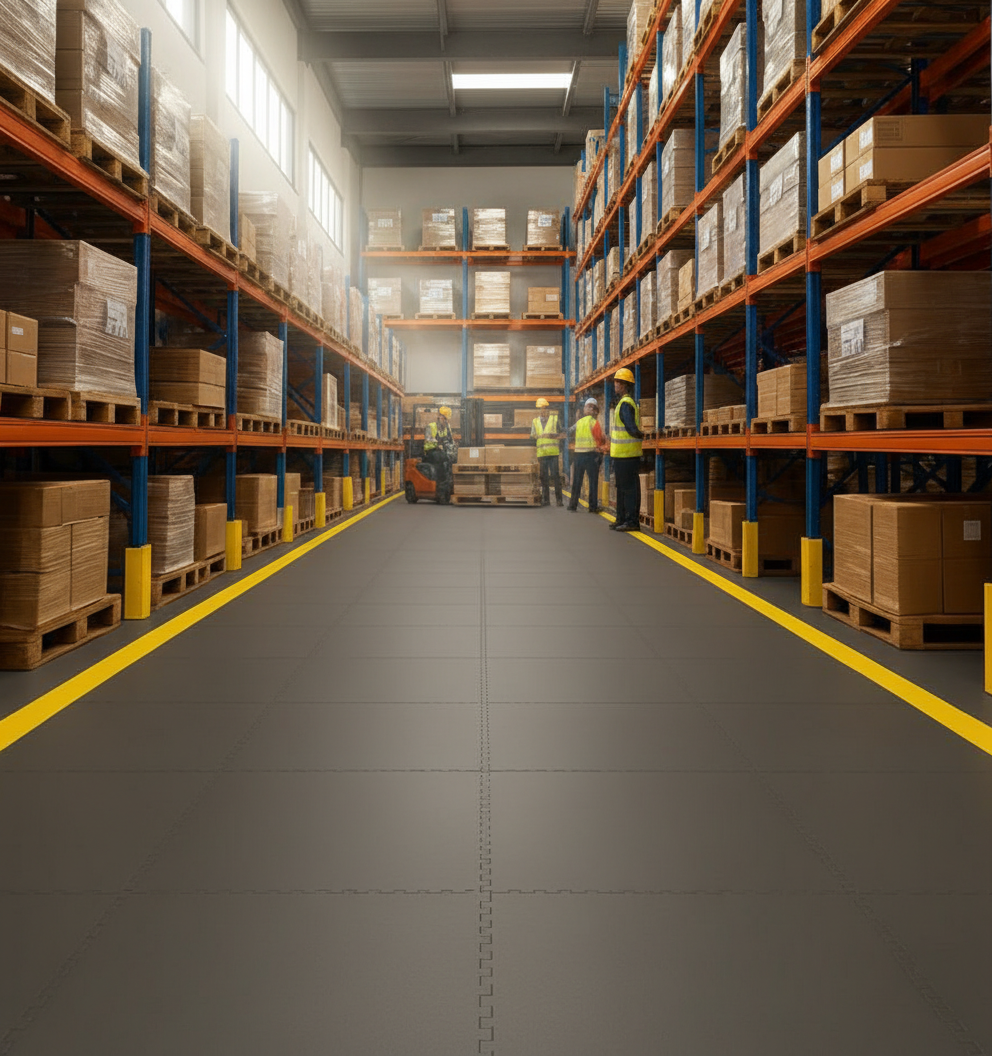

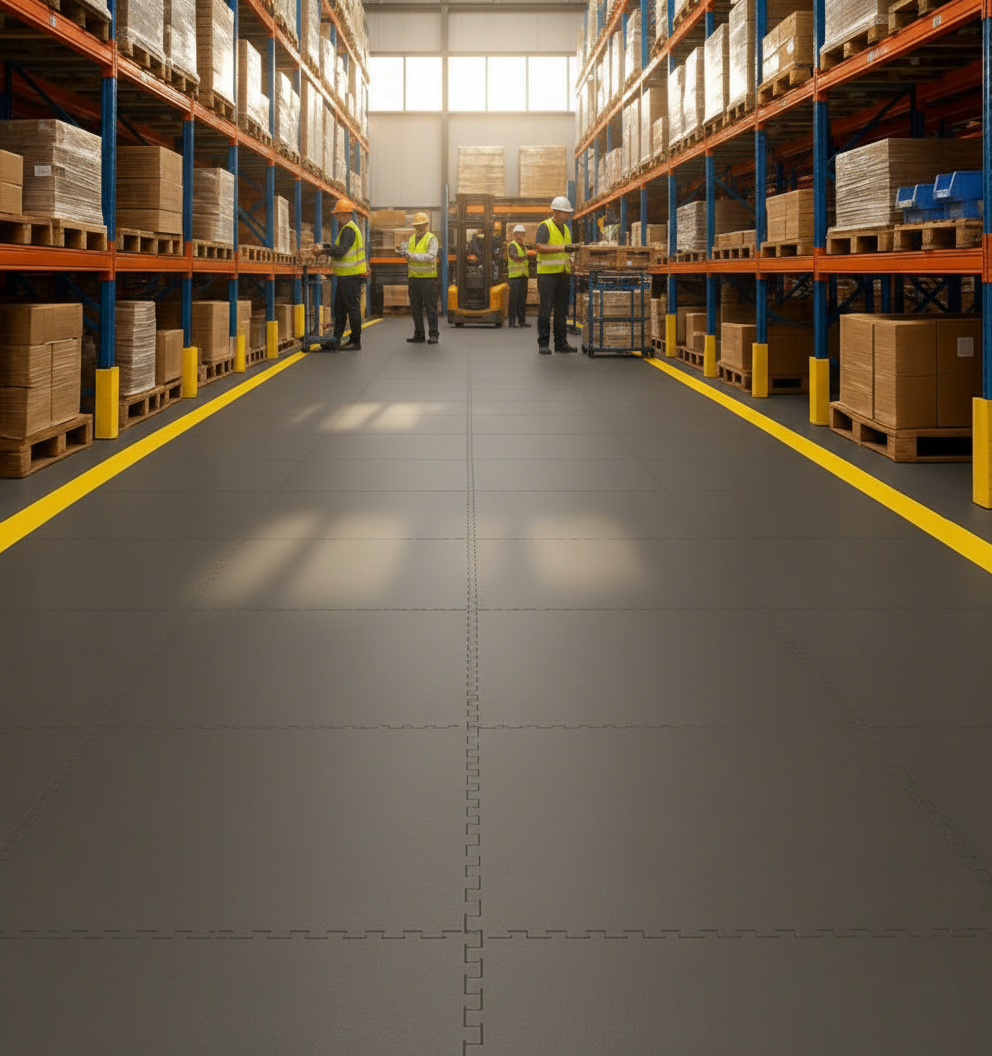

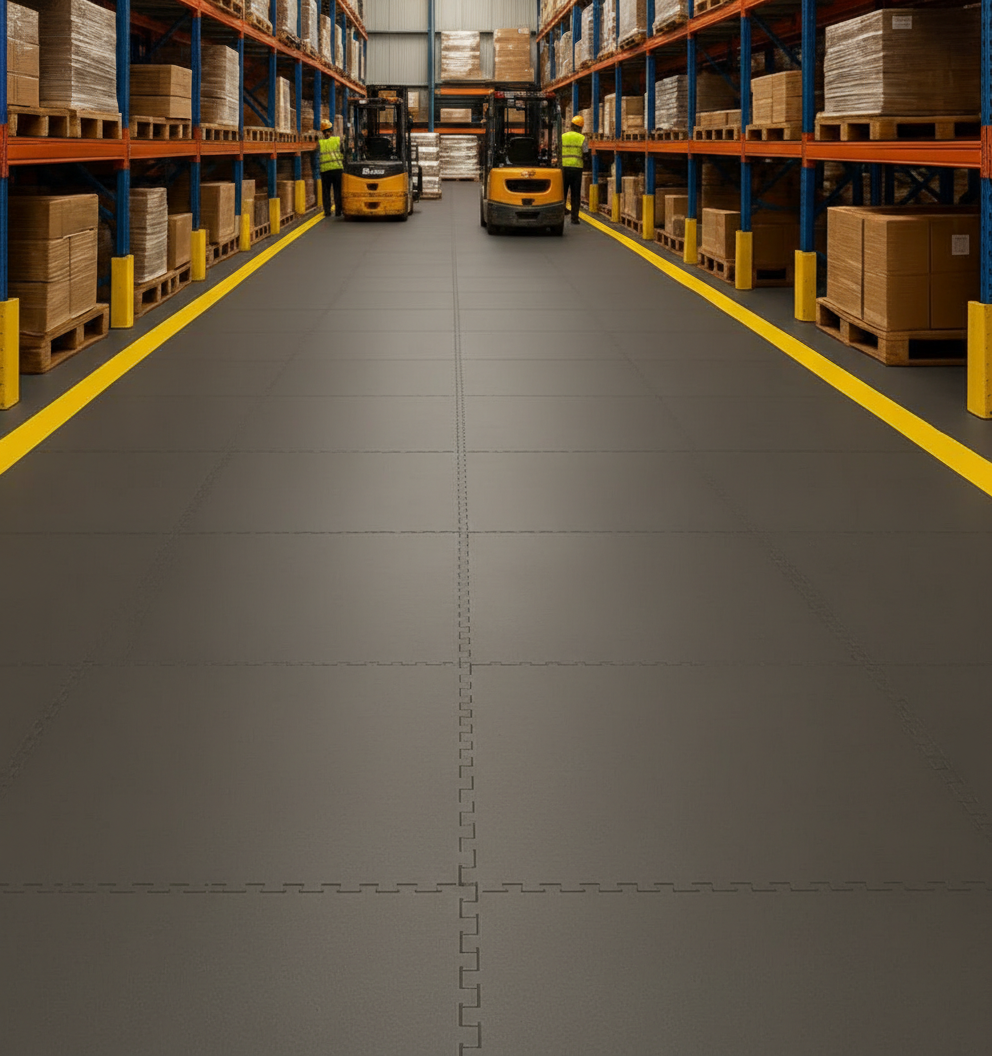

Warehouse and distribution centres

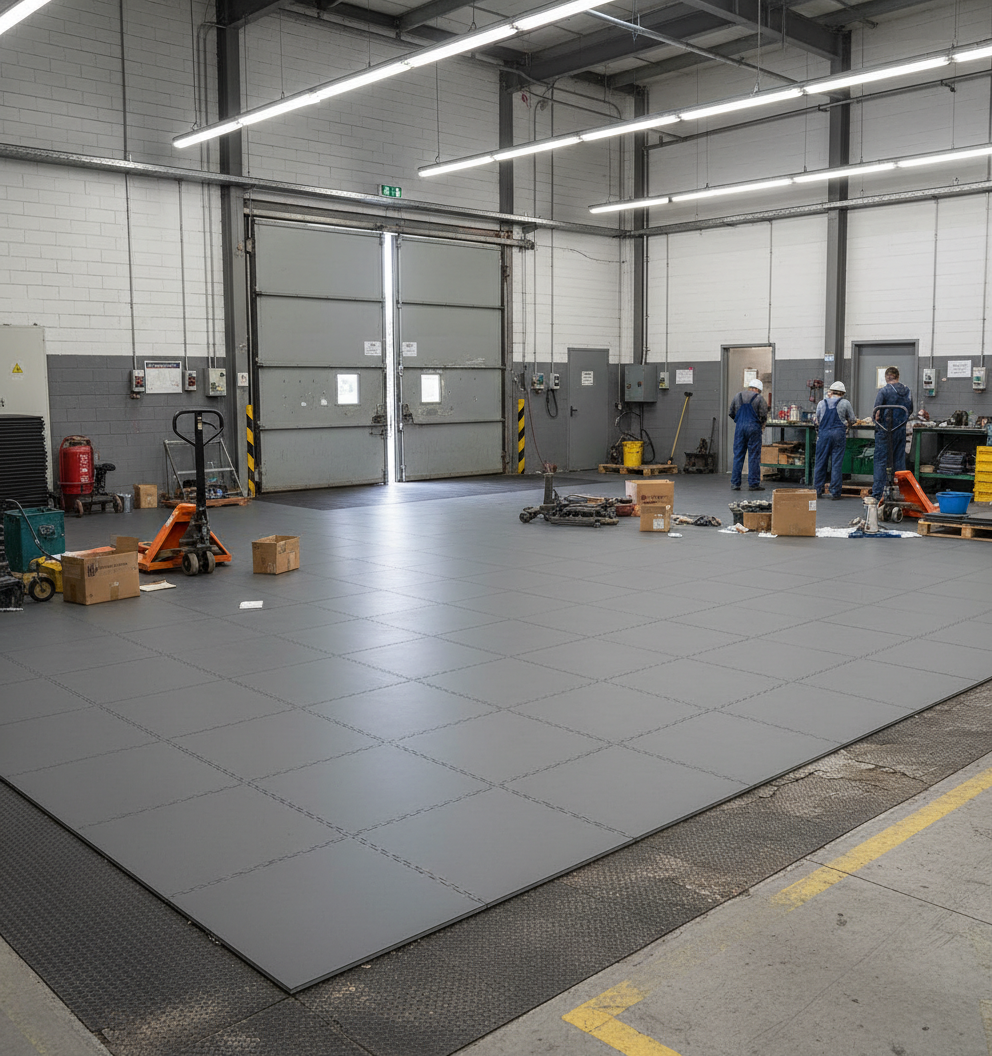

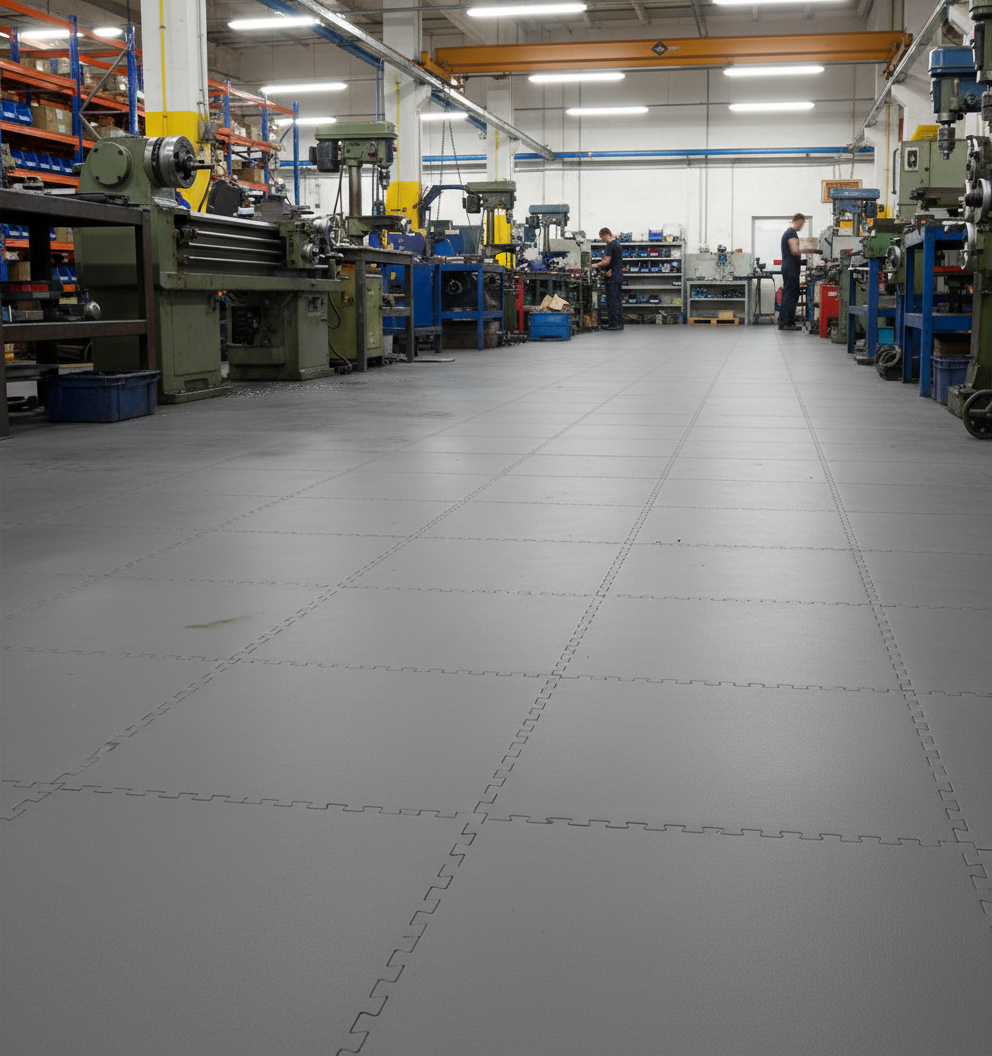

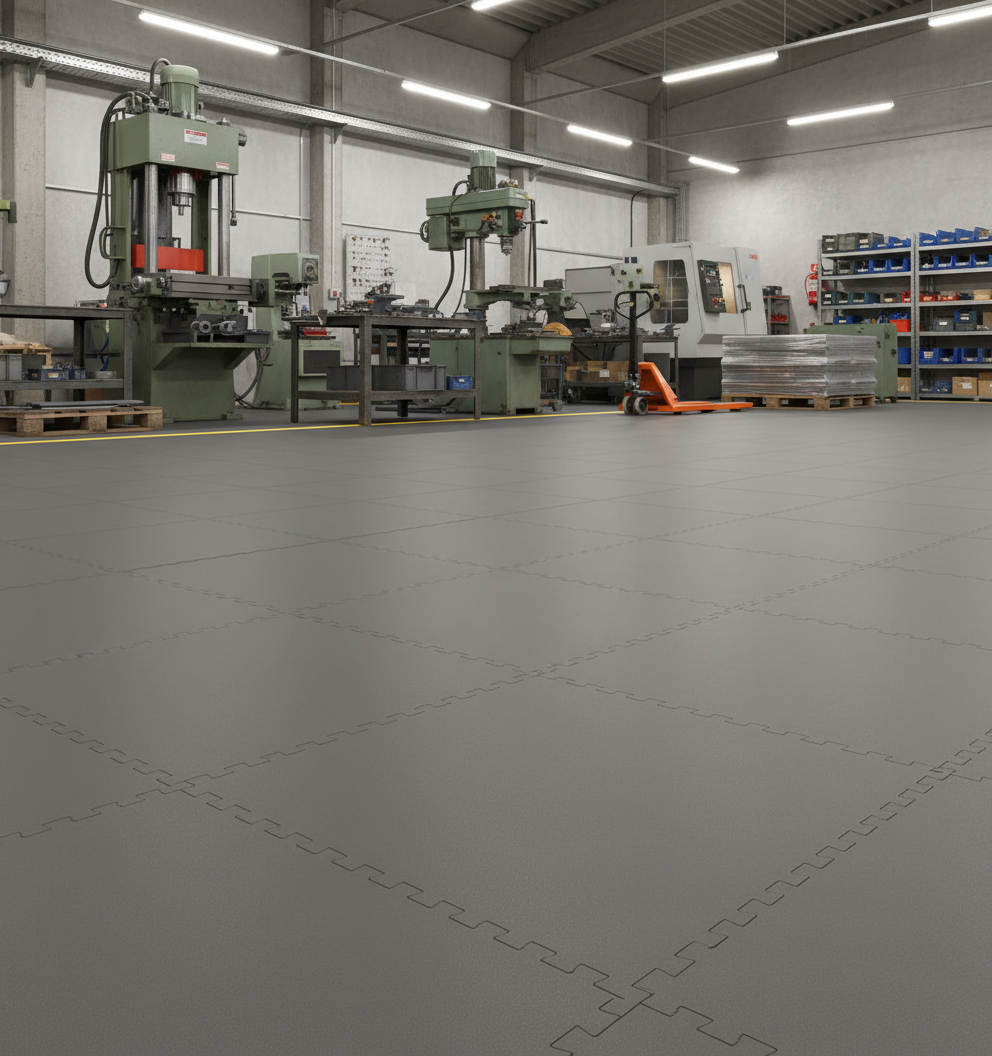

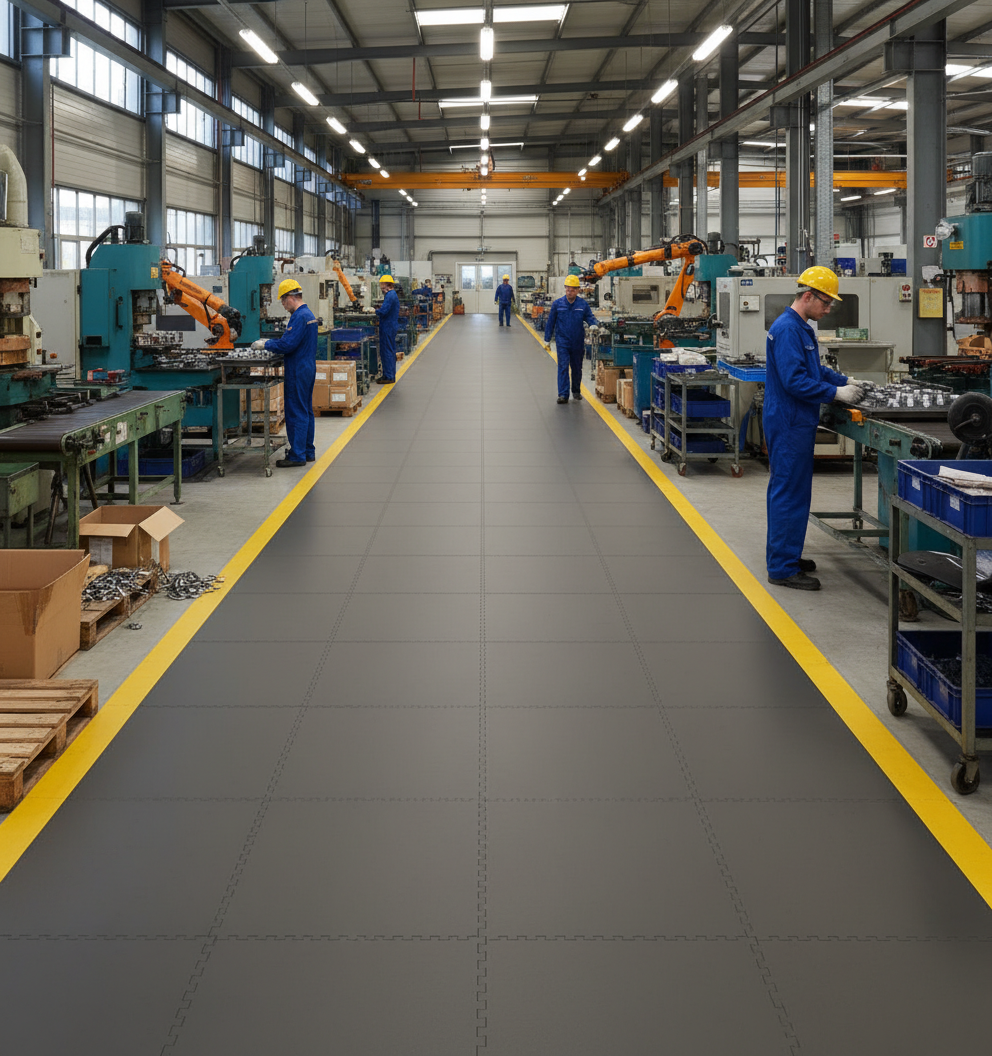

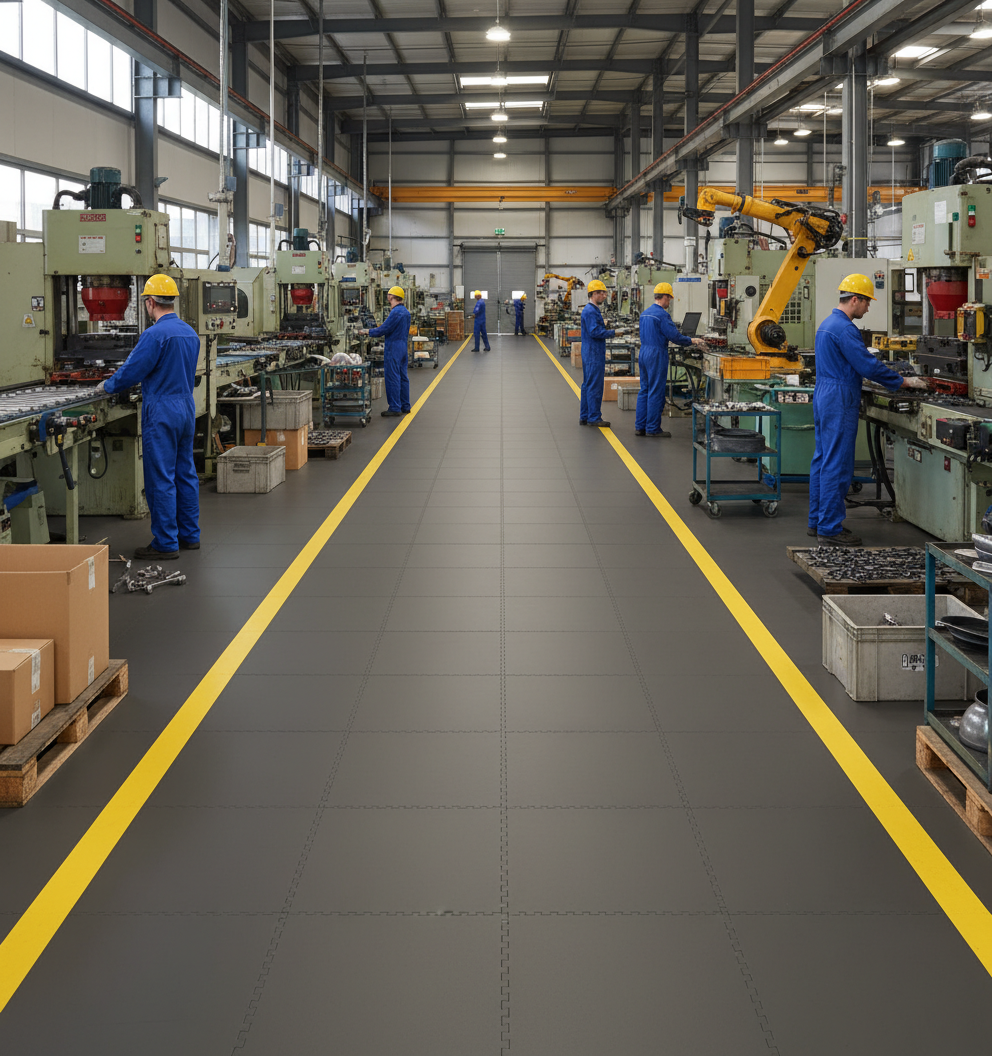

Factory and production floors

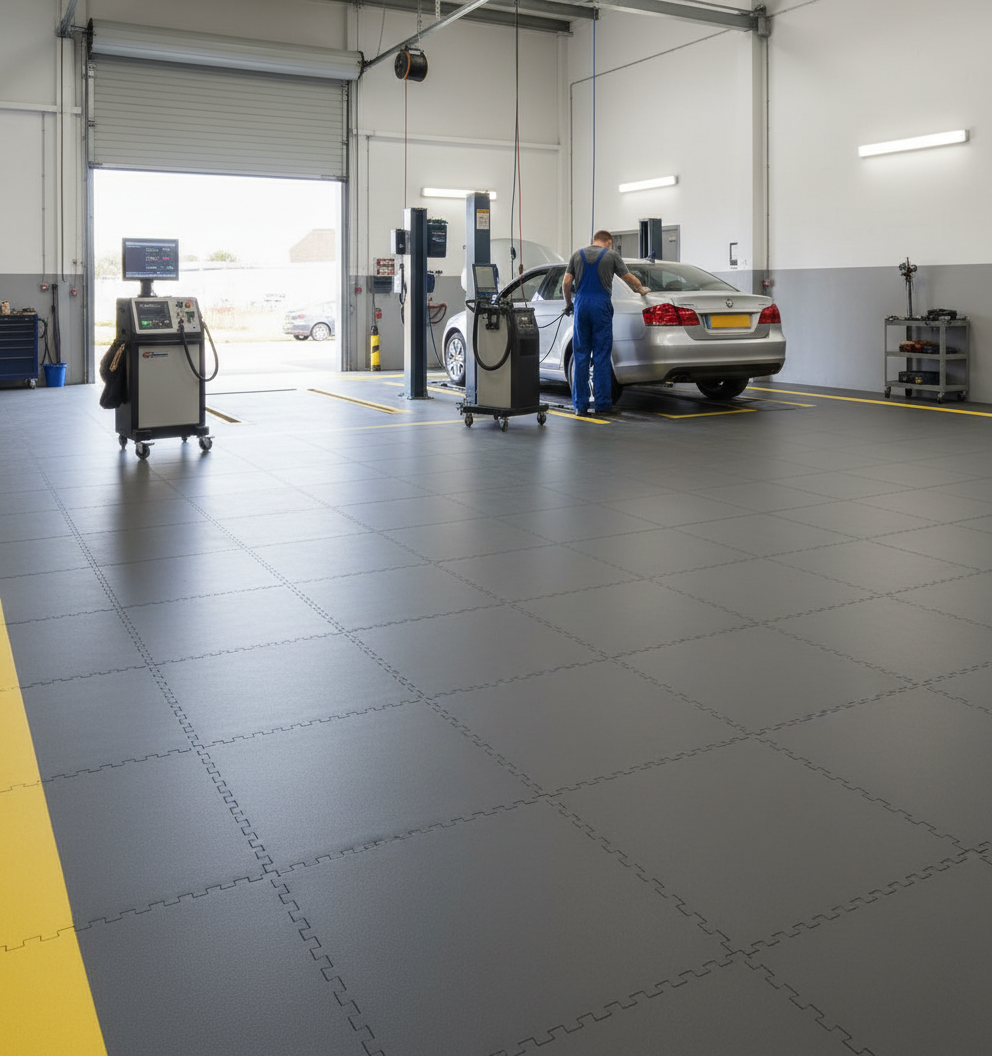

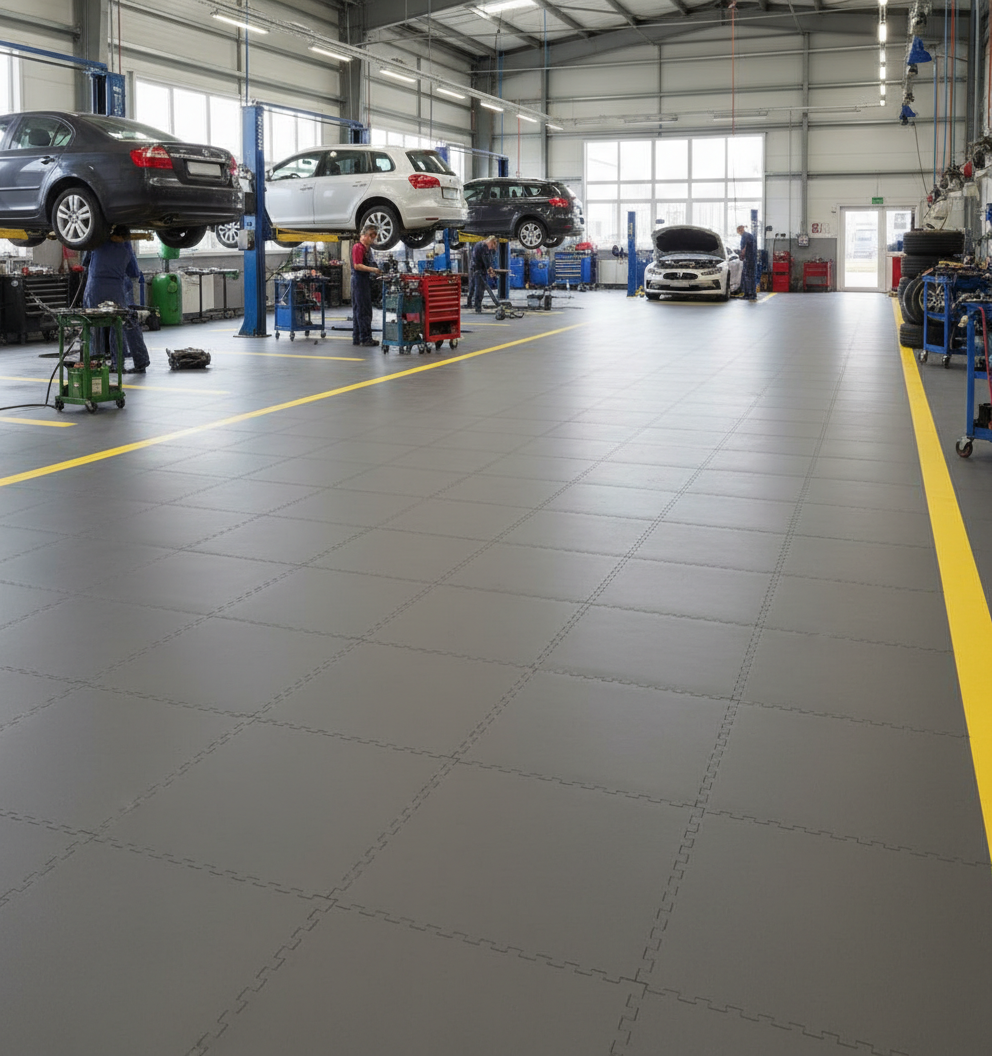

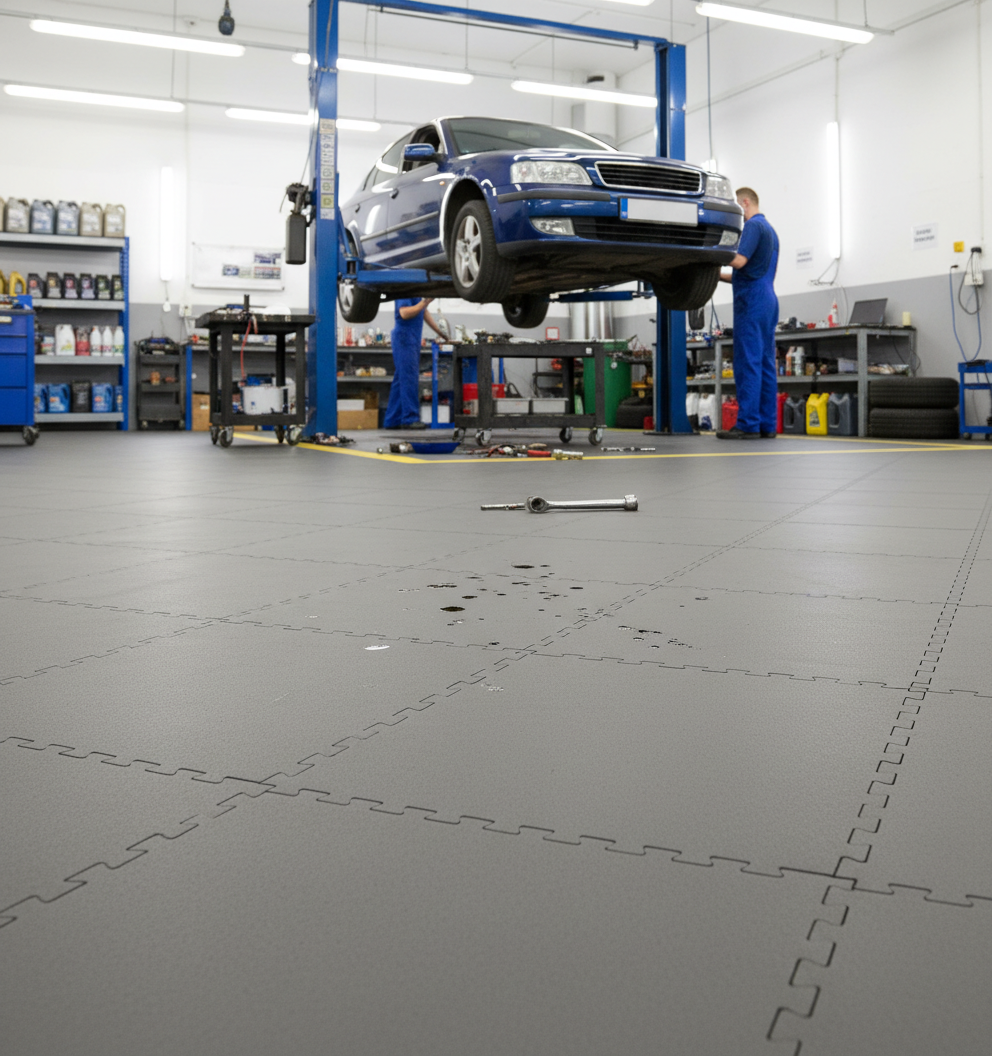

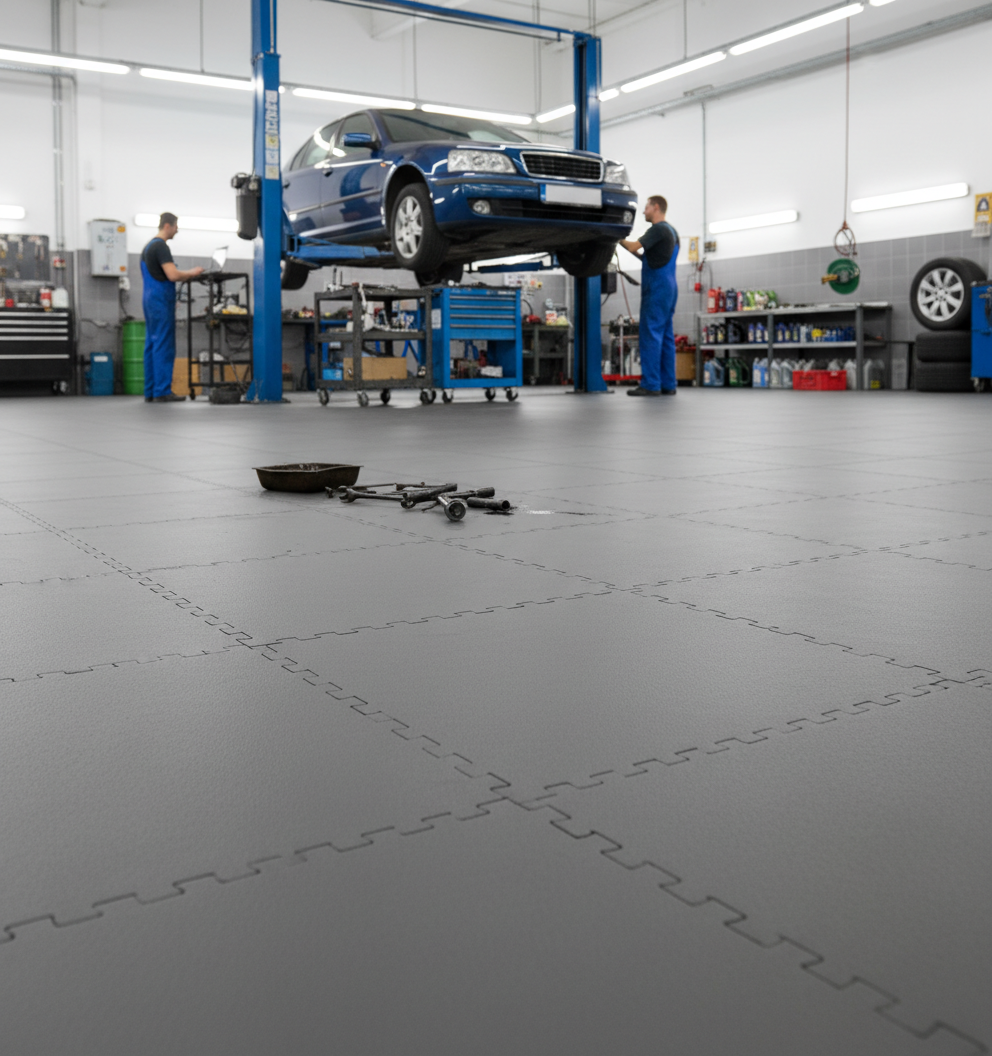

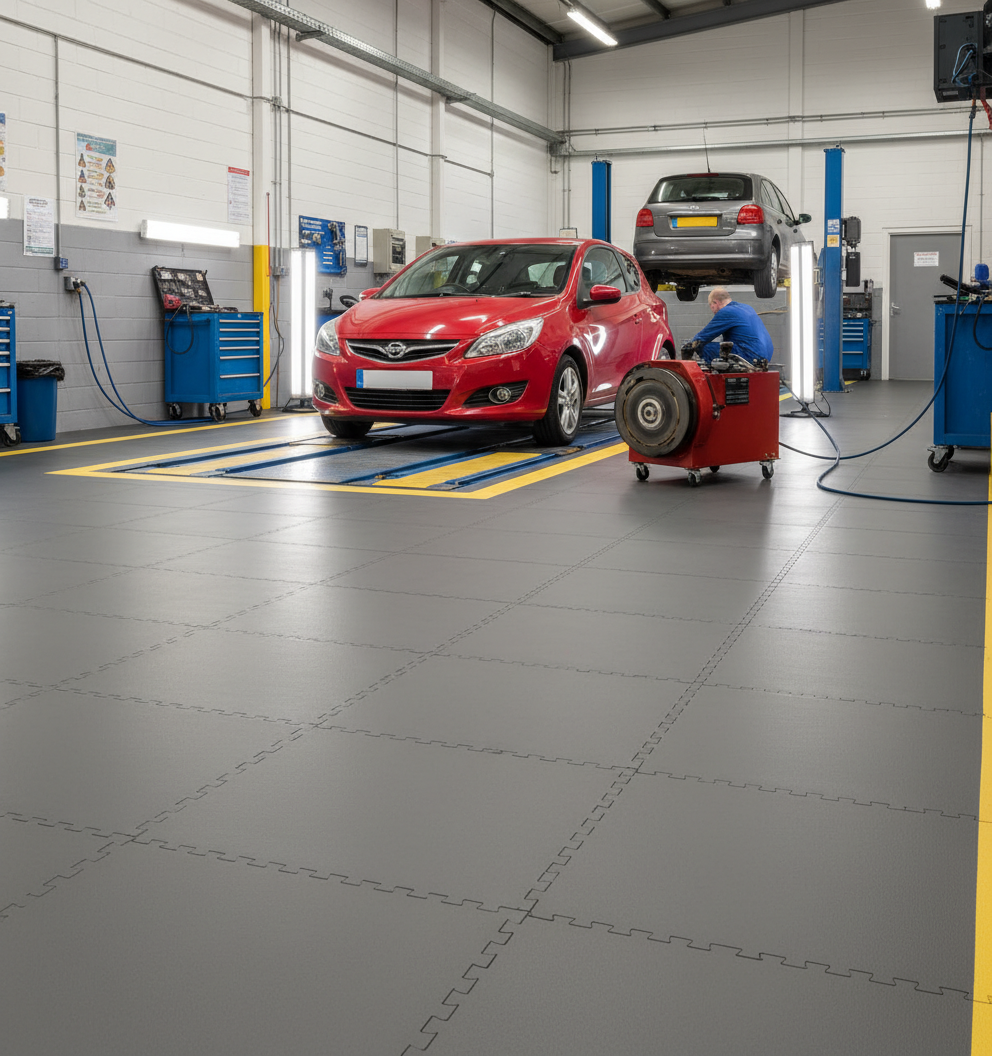

Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+3

In stock

Receives in 6 days.

10mm PVC Floor Tile Ramps & Corners | Professional Edge Trim | Interlocking System | UK Stock

10mm PVC Floor Tile Ramps & Corners | Professional Edge Trim | Interlocking System | UK Stock

(473)

From £15.90

Professional Edge Finishing for Interlocking Floor Systems

Complete your interlocking floor installation with professional-grade ramp and corner pieces. These 10mm PVC edge trims create smooth transitions between your floor tiles and existing surfaces, eliminating trip hazards and providing a clean, finished appearance suitable for commercial and industrial environments.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Industrial and commercial: These tiles are specifically engineered for the demands of industrial and commercial environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+3

In stock

Receives in 6 days.

10mm PVC Floor Tiles Ultra Heavy Duty | Interlocking Garage & Workshop Flooring | 500x500mm 5 Tonne Load Rating UK

10mm PVC Floor Tiles Ultra Heavy Duty | Interlocking Garage & Workshop Flooring | 500x500mm 5 Tonne Load Rating UK

(235)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Garage and Workshop

When garage and workshop environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 Tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

What Point Load Rating Actually Means

Point load differs from distributed load. A 5 tonnes point load means the tile can support 5 tonnes concentrated on a single small point – such as a trolley wheel, jack stand, or equipment foot. This is the most demanding load scenario and provides the true measure of tile strength.

Practical Applications

Vehicle lift pads and hydraulic jack points – Direct contact with concentrated weight
Heavy equipment and machinery bases – Static loads from industrial equipment
Rolling loads from trolleys and carts – Continuous movement across surface
Static loads from racking and storage systems – Long-term compression resistance

Rolling Load Capacity

Beyond point load, these tiles support rolling loads of 20+ tonnes – meaning fully-loaded pallet trucks, forklifts, and even HGVs can operate safely. The closed-cell PVC construction distributes weight evenly, preventing localised compression damage.

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters for your garage and workshop:

Virgin PVC vs Recycled

Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications with predictable long-term performance. Every batch meets identical standards.

Closed-Cell vs Open-Cell Construction

Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation. Our tiles remain impermeable throughout their 20+ year lifespan.

PVC vs Polypropylene

Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C – critical for unheated garage and workshop spaces in UK winters.

PVC vs Epoxy Coatings

Epoxy requires 72+ hours cure time, professional application, and fails on damp substrates. PVC tiles install immediately, require no curing, and perform on any hard subfloor. Damaged sections replace in minutes rather than requiring full floor refinishing.

PVC vs Rubber

Rubber offers good impact absorption but degrades faster with oil exposure and UV light. PVC provides superior chemical resistance, longer lifespan, and better cost-per-year economics for garage and workshop applications.

UK Commercial Compliance

Fire Rating: Bfl-s1 Classification

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance:

B: Limited contribution to fire spread (second-highest rating after A)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications. Documentation available for compliance audits.

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Load Testing: BS EN ISO 24344

All load ratings independently verified to British/European standards. Test certificates available for HSE inspections, insurance requirements, and building control sign-off.

Chemical Resistance Testing

Tested for resistance to common garage and workshop chemicals including engine oil, transmission fluid, brake fluid, coolant, diesel, petrol, battery acid, and industrial degreasers. Full resistance data sheets available on request.

Applications & Use Cases

Garage and Workshop: These tiles are specifically engineered for the demands of garage and workshop environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Verified Applications

Commercial garages and workshops – Vehicle service bays, MOT testing centres
Warehouse and distribution centres – Forklift traffic, pallet storage
Factory and production floors – Manufacturing environments, assembly lines
Vehicle maintenance facilities – Fleet workshops, HGV depots
Fire stations – Appliance bays, equipment storage
Aircraft hangars – Aviation maintenance, jet fuel exposure
Industrial storage areas – Heavy racking, chemical storage
Engineering workshops – Machine shops, precision manufacturing

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility

Installs over concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm variation. No substrate conditioning required.

Time Estimate

Two people can install 50m² in approximately 2-3 hours. No specialist skills required.

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Cost Analysis & ROI

Initial Investment

At £21.50 per tile (£86 per m²), a typical 20m² garage costs approximately £1,720 including delivery.

Total Cost of Ownership

Over 20 years, PVC tiles cost approximately £4.30 per m² per year. Compared to epoxy (re-application every 5-7 years) or paint (annual touch-ups), interlocking tiles deliver the lowest lifetime cost.

Hidden Savings

Zero downtime: No lost productivity during installation
DIY installation: No contractor costs
Spot repairs: Replace individual tiles, not entire floor
Relocatable: Take your floor if you move premises

Maintenance & Cleaning

Routine Cleaning

Sweep or blow off loose debris daily
Mop with standard floor cleaner or degreaser weekly
No sealing, waxing, or special treatments required

Heavy Contamination

Pressure washing safe up to 100 bar. Industrial degreasers can be used without surface damage.

Stain Removal

Oil and chemical spills wipe clean immediately. Closed-cell construction prevents absorption – fluids stay on surface for easy cleanup.

Long-Term Care

No re-coating, re-sealing, or refinishing required throughout 20+ year lifespan. Simply clean and use.

Environmental & Sustainability

100% recyclable: End-of-life tiles can be recycled into new products
20+ year lifespan: Reduces replacement waste
No VOCs: Safe installation with no harmful emissions
No adhesives: Eliminates chemical bonding agents
Relocatable: Reuse when moving premises

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery. Rolling load capacity exceeds 20 tonnes.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains safe grip even when contaminated with water, oil, or coolant.

Can I drive vehicles over these tiles?

Absolutely. Our tiles are engineered for vehicle traffic including cars, vans, HGVs, and forklifts. The 5 tonnes rating ensures no compression damage from any standard vehicle.

Do you offer free samples?

Yes! We offer free samples so you can see and feel the quality before you buy. Visit our Free Samples page to request yours.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 6 days.

10mm Ultra Heavy-Duty Interlocking PVC Floor Tiles | Forklift & HGV Rated | Warehouse & Industrial | UK Stock

10mm Ultra Heavy-Duty Interlocking PVC Floor Tiles | Forklift & HGV Rated | Warehouse & Industrial | UK Stock

(335)

£21.50

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Forklift and heavy equipment

When forklift and heavy equipment environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from loaded forklifts and heavy MHE equipment without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Loaded forklift traffic and pallet jack operations
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Forklift and heavy equipment: These tiles are specifically engineered for the demands of forklift and heavy equipment environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for forklifts, pallet jacks, and heavy MHE.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 6 days.

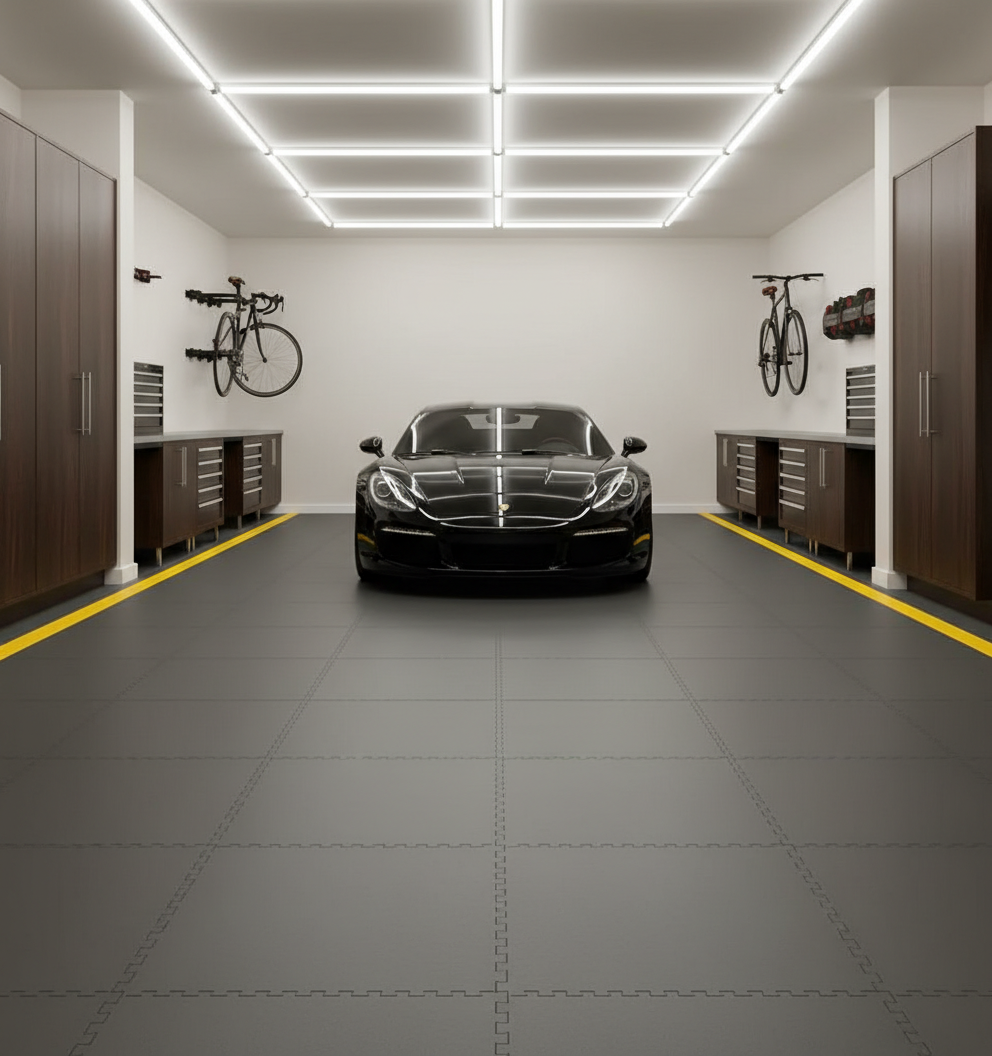

5 Tonne Load Rated PVC Floor Tiles 10mm | Ultra Heavy Duty Forklift & HGV Flooring | Industrial Strength 500x500mm UK

5 Tonne Load Rated PVC Floor Tiles 10mm | Ultra Heavy Duty Forklift & HGV Flooring | Industrial Strength 500x500mm UK

(274)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Forklift and heavy equipment

When forklift and heavy equipment environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from loaded forklifts and heavy MHE equipment without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Loaded forklift traffic and pallet jack operations
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Forklift and heavy equipment: These tiles are specifically engineered for the demands of forklift and heavy equipment environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for forklifts, pallet jacks, and heavy MHE.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 6 days.

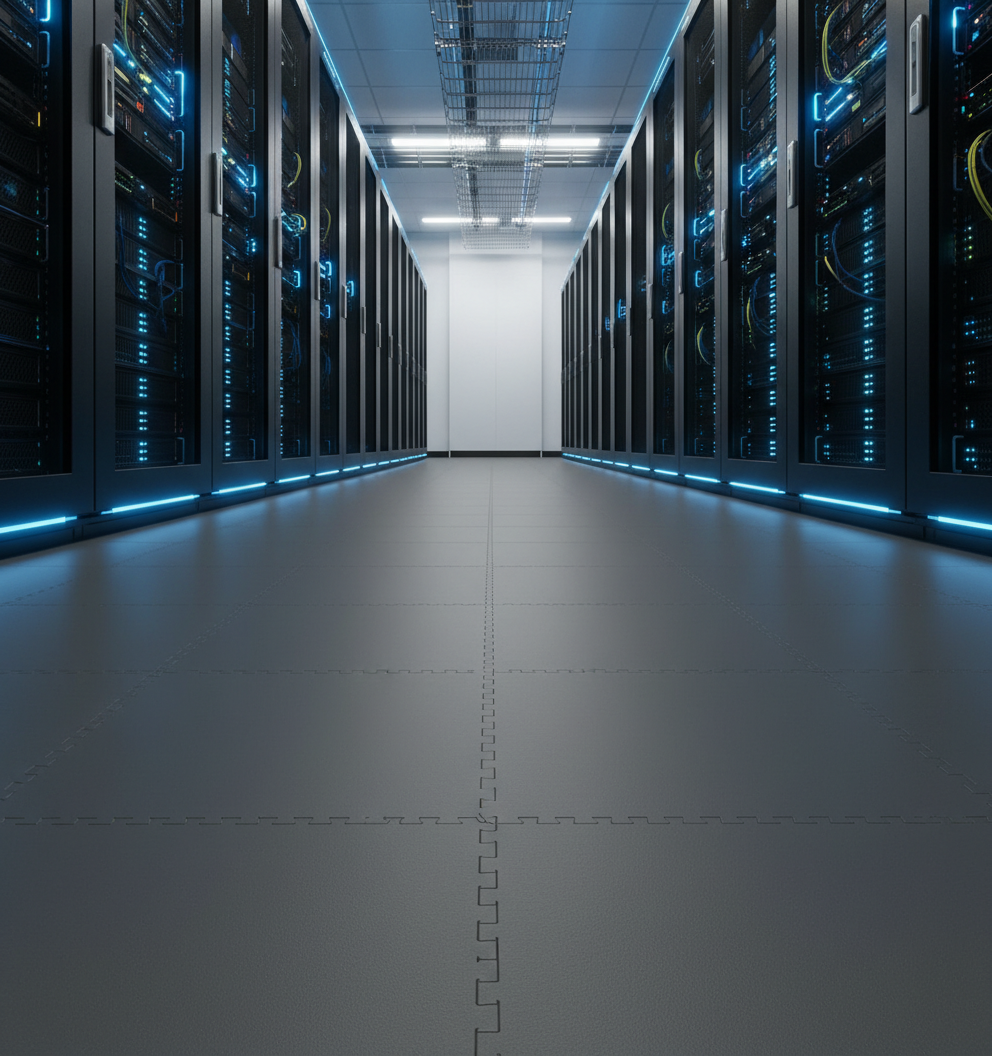

7mm ESD Anti-Static Interlocking PVC Floor Tiles | BS EN 61340 Compliant | Server Rooms & Electronics | UK Stock

7mm ESD Anti-Static Interlocking PVC Floor Tiles | BS EN 61340 Compliant | Server Rooms & Electronics | UK Stock

(163)

From £22.90

ESD Anti-Static Floor Tiles – BS EN 61340 Compliant Protection

Protect sensitive electronics, components, and equipment from electrostatic discharge with these BS EN 61340 compliant anti-static floor tiles. Engineered for server rooms, electronics manufacturing, data centres, and any environment where static electricity poses a risk to equipment or operations.

✓ BS EN 61340 Compliant | ✓ Controlled Static Dissipation | ✓ Zero Downtime Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
ESD Classification	Static Dissipative (BS EN 61340-5-1)
Surface Resistance	10⁶ to 10⁹ ohms
System Resistance	< 10⁹ ohms (when grounded)
Material	Conductive PVC compound
Surface Finish	Anti-slip textured (R10 rated)
Fire Rating	Bfl-s1 (EN 13501-1)
Connection	Interlocking with grounding capability
Warranty	10 years

Understanding ESD Protection

What Is Electrostatic Discharge?

ESD occurs when static electricity accumulated on a person or object suddenly discharges to a lower-potential surface. Voltages as low as 100V can damage sensitive electronic components – yet humans don't feel discharge below 3,000V. You can destroy components without knowing it.

How ESD Tiles Protect

Our tiles provide controlled static dissipation:

Surface resistance 10⁶-10⁹ ohms: Prevents static accumulation on floor surface
Body voltage generation: Minimised through controlled conductivity
Grounding path: When connected to earth, static drains safely away
Consistent performance: ESD properties maintained throughout tile lifespan

BS EN 61340: UK/European ESD Standard

Our tiles comply with BS EN 61340-5-1 – the British/European standard for protection of electronic devices from electrostatic phenomena.

What Compliance Means

Tested & verified: Surface and system resistance independently measured
Classification: Static Dissipative (not merely antistatic)
Documentation: Test certificates available for audits and compliance
Consistent: Every tile meets specification

Static Dissipative vs Conductive vs Antistatic

Type	Resistance	Application
Conductive	< 10⁶ ohms	Explosive environments
Static Dissipative	10⁶ - 10⁹ ohms	Electronics, server rooms
Antistatic	10⁹ - 10¹² ohms	General static reduction

Our tiles are Static Dissipative – the appropriate classification for electronics protection.

Applications

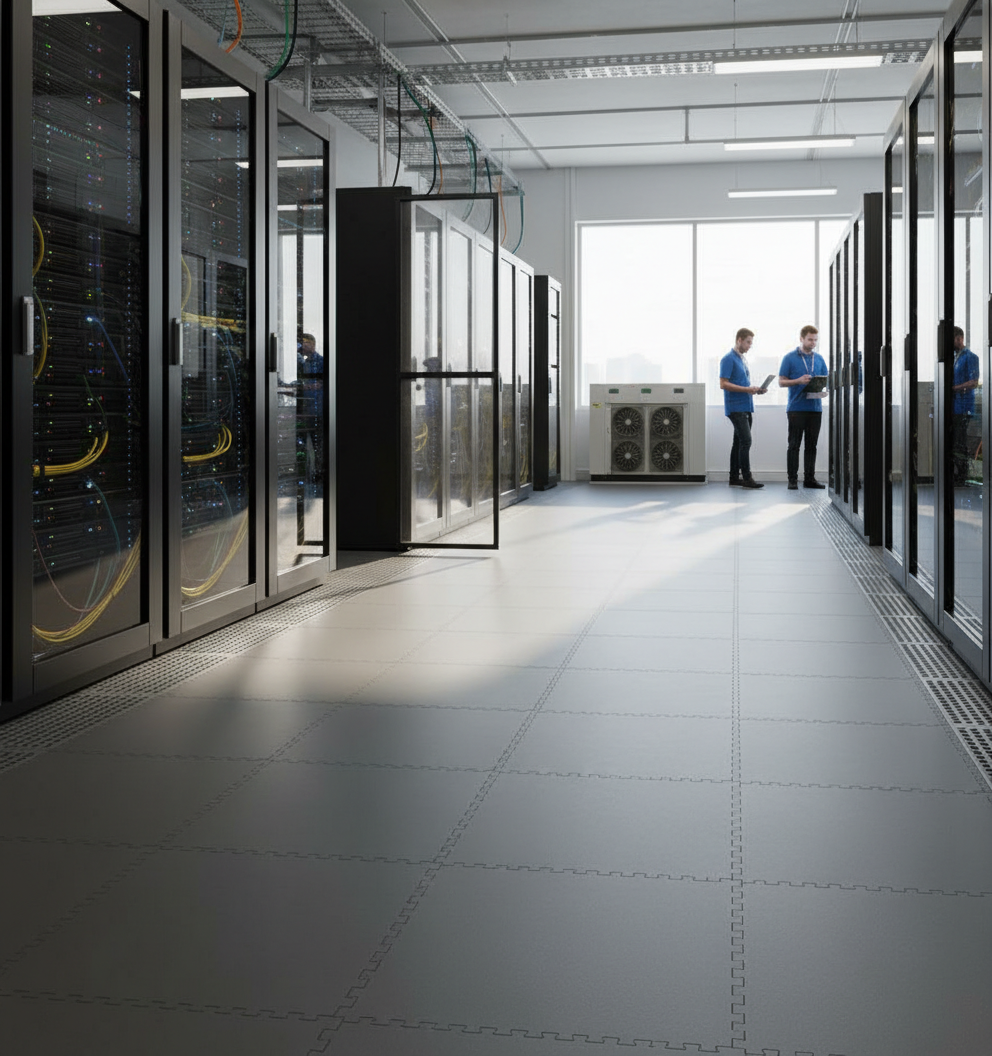

Server Rooms & Data Centres

Protect servers, networking equipment, and storage systems. ESD events can cause immediate failures or latent damage that reduces equipment lifespan.

Electronics Manufacturing

PCB assembly, component handling, and quality control areas. Protect work-in-progress and finished products from static damage.

Repair & Service Centres

Computer repair, phone repair, and electronics servicing. Protect customer equipment during diagnosis and repair.

Clean Rooms

Pharmaceutical, semiconductor, and precision manufacturing. ESD tiles complement other contamination control measures.

Control Rooms

Industrial control systems, SCADA environments, and monitoring centres. Protect sensitive control equipment from static events.

Installation for ESD Performance

Grounding Requirements

For optimal ESD protection, tiles should be grounded:

Grounding strips: Install copper grounding strips beneath tiles at intervals
Earth connection: Connect strips to building earth point
Testing: Verify system resistance after installation

Installation Without Grounding

Tiles still provide significant static reduction without grounding through their surface resistance properties. Grounding maximises protection for highest-sensitivity applications.

Standard Installation Process

Sweep floor clean
Install grounding strips if required
Lay tiles with interlocking edges
Cut edge tiles with utility knife
Connect grounding to earth
Test system resistance

Compliance Documentation

We provide documentation for:

BS EN 61340 test certificates
Surface resistance measurements
System resistance verification
Fire rating certificates (Bfl-s1)
Material safety data sheets

Documentation supports customer audits, insurance requirements, and regulatory compliance.

Maintenance for ESD Performance

Cleaning Requirements

Use ESD-safe cleaners: Standard cleaners may leave residue affecting conductivity
Avoid wax or polish: Coatings can insulate the surface
Regular cleaning: Dust and debris can affect surface resistance

Periodic Testing

For critical environments, periodic resistance testing verifies continued ESD performance. Test equipment and procedures available from ESD specialists.

Cost Analysis

ESD flooring investment protects far more valuable equipment:

Single server failure: £5,000 - £50,000+
Manufacturing defects: Warranty costs, reputation damage
Data loss: Potentially catastrophic business impact

ESD tile cost is minimal compared to equipment at risk.

Frequently Asked Questions

What is the difference between ESD and antistatic flooring?

ESD (Static Dissipative) flooring has controlled resistance of 10⁶-10⁹ ohms, providing reliable static dissipation for electronics protection. Generic "antistatic" products may have higher resistance (10⁹-10¹²) that's insufficient for sensitive equipment.

Do these tiles need to be grounded?

Grounding maximises ESD protection and is recommended for critical environments like server rooms. Tiles still provide significant static reduction without grounding through their surface resistance properties.

Are these tiles BS EN 61340 compliant?

Yes. Our tiles meet BS EN 61340-5-1 requirements for static dissipative flooring. Test certificates are available for compliance documentation and audits.

Can I install ESD tiles myself?

Yes. The tiles interlock like standard PVC tiles. For grounded installations, basic electrical knowledge is helpful for connecting grounding strips to earth, or consult an electrician.

How do I maintain ESD performance?

Use ESD-safe floor cleaners (avoid wax or polish), keep floors clean of dust and debris, and conduct periodic resistance testing for critical environments.

What colour options are available?

ESD tiles are typically available in grey or black. Contact us for current colour availability and to discuss your specific requirements.

Can these tiles be used in clean rooms?

Yes. ESD tiles complement clean room environments. The smooth, cleanable surface supports contamination control while providing static protection.

Do you provide test certificates?

Yes. BS EN 61340 compliance certificates, surface resistance test data, and fire rating documentation are available for customer audits and compliance requirements.

How long do ESD properties last?

ESD properties are integral to the tile material, not a surface treatment. With proper maintenance, ESD performance is maintained throughout the 20+ year tile lifespan.

Can I get samples for testing?

Yes. Free samples available for evaluation and resistance testing. Visit our Free Samples page or contact us directly.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 6 days.

7mm Heavy-Duty Interlocking PVC Garage Floor Tiles | Industrial Grade | UK Stock

7mm Heavy-Duty Interlocking PVC Garage Floor Tiles | Industrial Grade | UK Stock

(374)

From £17.90

7mm Heavy-Duty Garage Floor Tiles – Professional Results, Practical Thickness

The 7mm thickness delivers the perfect balance of performance and value for domestic garages and light commercial workshops. All the benefits of heavy-duty PVC interlocking tiles – oil resistance, easy installation, 20-year lifespan – at a thickness optimised for typical garage use.

✓ Heavy-Duty Load Rating | ✓ Oil & Chemical Resistant | ✓ DIY Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	Heavy-duty (verified to BS EN ISO 24344)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated)
Fire Rating	Bfl-s1 (EN 13501-1)
Chemical Resistance	Oils, fuels, coolant, brake fluid
Temperature Range	-20°C to +60°C
Connection	Precision interlocking – no adhesive
Warranty	10 years

7mm vs 10mm: Which Thickness Do You Need?

Choose 7mm When:

Primary use is domestic garage (car storage, DIY, light workshop)
Traffic is mainly foot traffic and occasional vehicle movement
Equipment is standard garage tools, not industrial machinery
Budget efficiency is a priority
Clearance under garage doors is limited

Choose 10mm When:

Heavy equipment or machinery will be used
Forklift or HGV traffic is expected
Maximum impact absorption is required
Commercial or industrial application

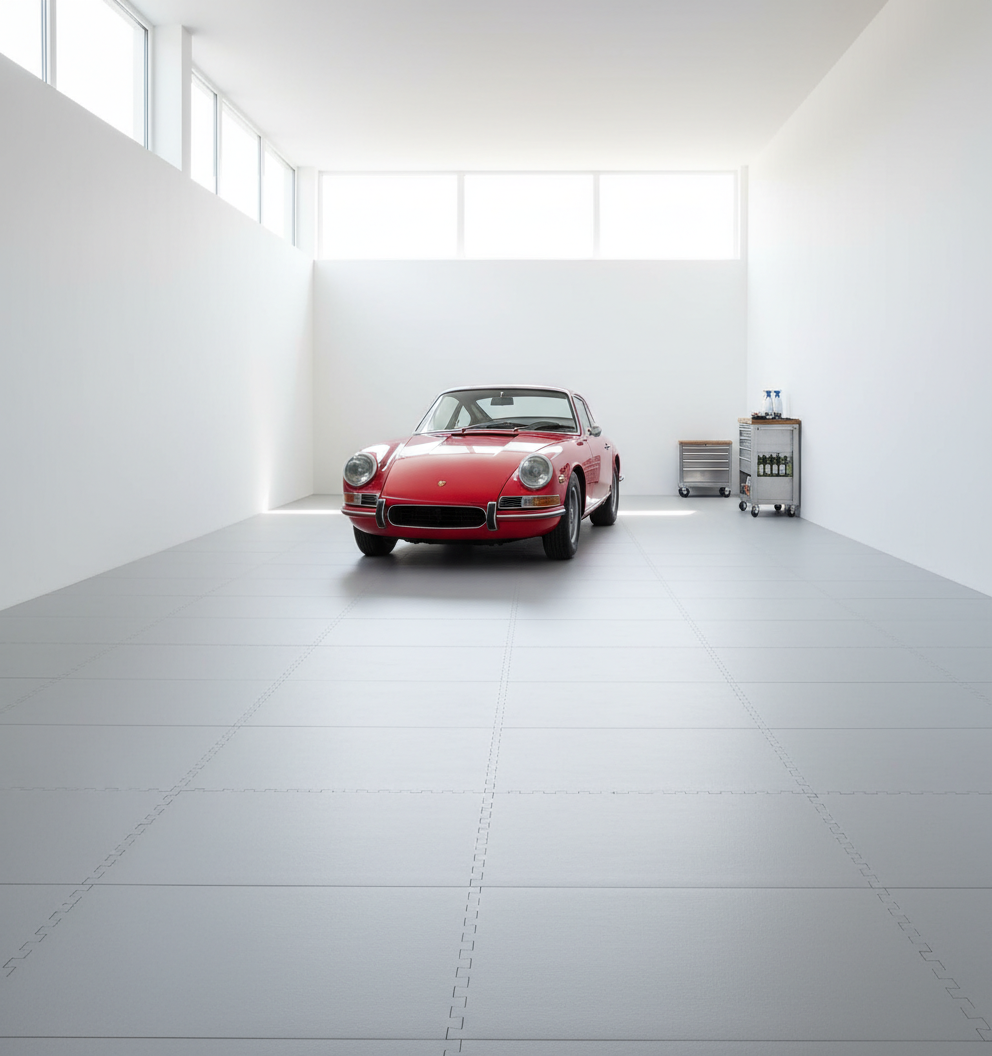

Why 7mm Is Ideal for Most Garages

Most UK domestic garages don't need industrial-grade 10mm tiles. The 7mm thickness handles:

Car and motorcycle storage: Daily driving in and out
Trolley jacks and axle stands: Routine maintenance tasks
Tool chests and workbenches: Standard garage equipment
Dropped tools: Impact absorption for everyday accidents

The 7mm profile also provides practical advantages:

Door clearance: Less likely to interfere with garage doors
Transition height: Smaller step at doorways
Cost efficiency: Lower material cost for same coverage

Complete Oil & Chemical Protection

The 7mm tiles use identical closed-cell PVC construction as our 10mm range – providing complete fluid barrier protection:

Engine Oil	✓ Full Resistance
Brake Fluid	✓ Full Resistance
Coolant	✓ Full Resistance
Petrol & Diesel	✓ Full Resistance
Degreasers	✓ Full Resistance

DIY Installation in Hours

What You Need

Broom
Tape measure
Utility knife

Installation Steps

Sweep garage floor clean
Start in corner, work outward
Click tiles together by hand
Cut edge tiles with utility knife
Install ramp edges at door

Time Required

Single garage: 1.5-2 hours | Double garage: 2-3 hours

UK Compliance

Fire Rating: Bfl-s1

Meets EN 13501-1 requirements for commercial and domestic premises.

Slip Rating: R10

Anti-slip surface rated to DIN 51130. Safe when wet or oily.

Cost Analysis

7mm tiles offer excellent value for domestic applications:

Single garage (15m²): Approx. £XXX
Double garage (30m²): Approx. £XXX

20+ year lifespan means cost per year is minimal compared to paint or epoxy alternatives requiring regular reapplication.

Maintenance

Weekly sweep and mop
Wipe oil spills immediately
No sealing or waxing required
Pressure wash for deep cleaning

Frequently Asked Questions

Is 7mm thick enough for a garage?

Yes. 7mm is ideal for most domestic garages handling car storage, DIY work, and standard garage equipment. Only upgrade to 10mm if you have heavy machinery or commercial/industrial loads.

Can I drive my car on 7mm tiles?

Absolutely. 7mm tiles are designed for vehicle traffic. Cars, motorcycles, and vans drive on and off daily without any damage to the tiles.

Will a trolley jack damage 7mm tiles?

No. Standard trolley jacks and axle stands work fine on 7mm tiles. The load rating handles typical garage maintenance equipment without compression damage.

Do 7mm tiles have the same oil resistance as 10mm?

Yes. Both use identical closed-cell PVC construction. Oil resistance, chemical resistance, and fluid barrier properties are the same regardless of thickness.

Will 7mm tiles clear my garage door?

Usually yes. The 7mm profile is less likely to interfere with garage door clearance than thicker alternatives. Measure your current clearance – 7mm plus optional ramp edge is typically 10-15mm total.

Can I mix 7mm and 10mm tiles?

Not recommended. Different thicknesses create a step hazard. Choose one thickness for your entire floor for safety and appearance.

How long do 7mm tiles last?

20+ years with normal garage use. The virgin PVC construction and UV stability ensure long-term performance without degradation.

Are 7mm tiles slippery?

No. R10 anti-slip rating means the textured surface maintains grip even when wet or contaminated with oil.

Can I install over painted concrete?

Yes. Tiles install over any hard surface including painted concrete, bare concrete, or existing floor coverings. No removal or preparation required.

Do you offer free samples?

Yes! Request a free sample to check quality, colour, and texture before ordering. Visit our Free Samples page.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 6 days.

7mm T-Joint E500 Interlocking PVC Floor Tiles | Heavy-Duty Industrial | Garage & Workshop | UK Stock

7mm T-Joint E500 Interlocking PVC Floor Tiles | Heavy-Duty Industrial | Garage & Workshop | UK Stock

(140)

From £17.99

Heavy-Duty 7mm PVC Floor Tiles – Engineered for Garage and workshop

When garage and workshop environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	1.8kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Garage and workshop: These tiles are specifically engineered for the demands of garage and workshop environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+5

In stock

Receives in 6 days.

7mm X-Joint Interlocking PVC Floor Tiles | Heavy-Duty Garage & Workshop Flooring | UK Manufacturer

7mm X-Joint Interlocking PVC Floor Tiles | Heavy-Duty Garage & Workshop Flooring | UK Manufacturer

(293)

From £15.90

Heavy-Duty 7mm PVC Floor Tiles – Engineered for Garage and workshop

When garage and workshop environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	7mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	1.8kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Garage and workshop: These tiles are specifically engineered for the demands of garage and workshop environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 6 days.

Aircraft Hangar Flooring Tiles 10mm PVC | Aviation Workshop Floor Protection | Jet Fuel Resistant 5T Load UK

Aircraft Hangar Flooring Tiles 10mm PVC | Aviation Workshop Floor Protection | Jet Fuel Resistant 5T Load UK

(272)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Aircraft hangar and aviation

When aircraft hangar and aviation environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance
Aviation Fuel (Jet-A, Avgas)	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Aircraft hangar and aviation: These tiles are specifically engineered for the demands of aircraft hangar and aviation environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 6 days.

Anti-Slip R10 Industrial Floor Tiles 10mm | Heavy Duty PVC Non-Slip Workshop Flooring | Wet Area Safe 5 Tonne Rated UK

Anti-Slip R10 Industrial Floor Tiles 10mm | Heavy Duty PVC Non-Slip Workshop Flooring | Wet Area Safe 5 Tonne Rated UK

(179)

£21.50 £26.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Industrial and commercial

When industrial and commercial environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Industrial and commercial: These tiles are specifically engineered for the demands of industrial and commercial environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

+1

In stock

Receives in 6 days.

Automotive Garage Flooring - Lift-Compatible Design

Automotive Garage Flooring - Lift-Compatible Design

(402)

From £19.90

Automotive Garage Flooring – Professional-Grade UK Flooring

Transform your automotive garage environment with these 5 tonnes rated heavy-duty PVC interlocking floor tiles. Engineered for demanding UK commercial and industrial applications where lift compatible performance is essential.

✓ 5 Tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Downtime Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm heavy-duty
Load Rating	5 tonnes point load (BS EN ISO 24344)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, hydraulic fluid, coolants, acids
Temperature Range	-20°C to +60°C continuous use
Connection	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Engineered for Automotive Garage Applications

These tiles are specifically designed for automotive garage environments, handling the unique combination of loads, chemicals, and operational requirements these facilities demand.

Key Performance Features

5 tonnes point load: Support for heavy equipment, vehicles, and machinery
Chemical barrier: Complete protection against oils, fuels, and industrial fluids
Anti-slip surface: R10 rated for safety even when contaminated
Zero cure time: Install and operate immediately
Section repairs: Replace individual tiles without floor closure

Load Rating: BS EN ISO 24344 Verified

Our 5 tonnes point load rating is independently verified to British/European standards. This means:

Vehicle lifts and jacks: Full support for maintenance equipment
Heavy machinery: Industrial equipment bases and mounting points
Rolling loads 20+ tonnes: Forklift and vehicle traffic
Static equipment: Workbenches, racking, and storage systems

Chemical Resistance

Closed-cell PVC construction provides complete barrier protection:

Engine & Hydraulic Oil	✓ Full Resistance
Brake Fluid & Coolant	✓ Full Resistance
Diesel & Petrol	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance
Cutting Fluids	✓ Full Resistance

UK Compliance

Fire Rating: Bfl-s1

EN 13501-1 compliant. Meets Building Regulations and insurance requirements.

Slip Resistance: R10

DIN 51130 rated. HSE compliant for workplace safety.

Installation

Sweep floor clean
Click tiles together from corner outward
Cut edges with utility knife
Use immediately – no cure time

50m² in 2-3 hours with two people. No specialist tools or contractors required.

PVC Tiles vs Alternatives

Factor	PVC Tiles	Epoxy	Paint
Install Time	Hours	Days	Days
Cure Time	Zero	72+ hrs	24+ hrs
DIY	Yes	No	Limited
Repairs	Replace tile	Recoat all	Repaint
Lifespan	20+ years	5-10 years	1-3 years

Maintenance

Sweep and mop weekly
Degrease as needed
Pressure wash for deep cleaning
No sealing or waxing required

Frequently Asked Questions

What load rating do these tiles support?

5 tonnes point load (BS EN ISO 24344 verified) and 20+ tonnes rolling load capacity. Suitable for heavy equipment, vehicle lifts, and industrial machinery.

Can I install over existing flooring?

Yes. Install over concrete, existing tiles, painted floors, or damaged surfaces. Simply sweep clean – no preparation required.

How long does installation take?

Approximately 50m² in 2-3 hours with two people. No specialist tools required – tiles click together by hand.

Are these tiles oil resistant?

Yes. Closed-cell PVC provides complete barrier protection against oils, fuels, coolants, and industrial chemicals.

Do these tiles meet fire regulations?

Yes. Bfl-s1 rated to EN 13501-1, meeting UK Building Regulations and commercial insurance requirements.

What if a tile gets damaged?

Replace individual tiles in under 2 minutes. No need to replace the entire floor or call contractors.

Are these tiles slippery when wet?

No. R10 anti-slip rating ensures safe grip even when wet or contaminated with oil.

Can I relocate the tiles?

Yes. No adhesive means tiles lift up and reinstall at new premises.

What warranty is included?

10-year commercial warranty covering manufacturing defects and performance.

Do you offer samples?

Yes! Free samples available. Visit our Free Samples page to request yours.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 6 days.

Car Workshop Floor Tiles - Service Bay Grade

Car Workshop Floor Tiles - Service Bay Grade

(316)

From £19.90

Car Workshop Floor Tiles – Professional-Grade UK Flooring

Transform your car workshop with these 5 tonnes rated heavy-duty PVC interlocking floor tiles. Engineered for demanding UK commercial and industrial applications where service bay performance is essential.

✓ 5 Tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Downtime Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm heavy-duty
Load Rating	5 tonnes point load (BS EN ISO 24344)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, hydraulic fluid, coolants, acids
Temperature Range	-20°C to +60°C continuous use
Connection	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Designed for Car Workshop Environments

These tiles are specifically engineered for car workshop applications, handling the unique demands of service bay environments:

Heavy load support: 5 tonnes point load, 20+ tonnes rolling capacity
Chemical protection: Complete resistance to oils, fuels, and industrial chemicals
Safety compliant: Bfl-s1 fire rating, R10 slip resistance
Rapid installation: Zero downtime, section-by-section if needed
Easy maintenance: Sweep, mop, replace damaged tiles in minutes

Load Rating: 5 Tonnes Verified

BS EN ISO 24344 independently tested for:

Vehicle and equipment jacks
Heavy machinery bases
Forklift traffic (20+ tonnes rolling)
Racking system legs

Chemical Resistance

Oils & Hydraulic Fluid	✓ Full Resistance
Brake Fluid & Coolant	✓ Full Resistance
Diesel & Fuels	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

UK Compliance

Fire Rating: Bfl-s1 (EN 13501-1) – meets Building Regulations
Slip Rating: R10 (DIN 51130) – HSE compliant

Installation

Sweep floor, click tiles together, cut edges with utility knife. 50m² in 2-3 hours with two people. No cure time – use immediately.

Frequently Asked Questions

What load can these tiles support?

5 tonnes point load and 20+ tonnes rolling load capacity. Suitable for forklifts, heavy machinery, and vehicle traffic.

Can I install without stopping operations?

Yes. Install section-by-section during quiet periods. No cure time means immediate use after installation.

Are these tiles oil resistant?

Yes. Closed-cell PVC provides complete barrier protection against all common industrial oils and chemicals.

Do these meet fire regulations?

Yes. Bfl-s1 rated to EN 13501-1, meeting UK Building Regulations and insurance requirements.

What if a tile gets damaged?

Replace individual tiles in under 2 minutes. No contractors or floor closure required.

Are these tiles slippery?

No. R10 anti-slip rating ensures safe grip even when wet or contaminated.

Can I install over damaged concrete?

Yes. Tiles bridge cracks and imperfections up to 3mm. No repair or preparation needed.

How long do these tiles last?

20+ years with normal use. 10-year commercial warranty included.

Can I relocate the floor?

Yes. No adhesive means tiles lift up and reinstall at new premises.

Do you offer samples?

Yes! Free samples available on our Free Samples page.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 6 days.

Commercial Garage Floor Tiles | 20 Tonne Load Rating | Oil-Resistant PVC

Commercial Garage Floor Tiles | 20 Tonne Load Rating | Oil-Resistant PVC

(181)

From £15.90 £19.88

-20%

Heavy-Duty Commercial Garage Floor Tiles – Engineered for Professional Operations

When commercial garages demand flooring that withstands relentless vehicle traffic, hydraulic equipment loads, and daily chemical exposure, these 20-tonne rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for trade environments where operational uptime directly impacts revenue.

✓ 20-Tonne Verified Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness Options	7mm Standard \| 10mm Heavy-Duty
Load Rating	20 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	1.8kg per tile (7mm) \| 2.5kg per tile (10mm)
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 20-Tonne Load Rating

Load rating isn't marketing – it's engineering. Our 20-tonne point load rating means these tiles withstand concentrated weight from vehicle jacks, four-post lifts, and loaded engine hoists without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Unlike claimed ratings from overseas manufacturers, our testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads concentrating 2+ tonnes per contact point
Hydraulic jacks supporting full vehicle weight
Loaded tool chests and equipment trolleys
Rolling loads from transmission jacks and engine cranes

Material Science: Why Virgin PVC Matters

Flooring material determines performance longevity. Our tiles use 100% virgin PVC in closed-cell construction – here's why this matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications batch after batch.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures (common in budget tiles) absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles offer lower chemical resistance and become brittle in cold temperatures. PVC maintains flexibility and performance from -20°C to +60°C – critical for unheated commercial garages.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times or concrete grinding preparation, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges where required for smooth transitions.

Time Estimate: Average commercial bay (50m²) completes in 2-3 hours with two people.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces. The rigid tile structure bridges minor imperfections up to 3mm.

Chemical Resistance: Full Automotive Fluid Protection

Commercial garages handle aggressive substances daily. Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Gearbox Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Power Steering Fluid	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Brake Cleaner & Degreasers	✓ Full Resistance

Important: While tiles resist these chemicals, we recommend cleaning spills promptly for optimal appearance. Prolonged exposure to undiluted solvents may cause surface softening.

Slip Rating Explained: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial workshop environments
Maintains grip even when contaminated with oil films

For higher-risk areas (constant wet conditions, heavy oil contamination), consider our R11-rated options or supplementary anti-fatigue matting in critical zones.

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

What Bfl-s1 Means:

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations requirements for commercial premises and meets insurance specifications for most industrial applications. Certification documentation available on request.

Commercial Use Cases

Trade Garages & Workshops: Daily vehicle traffic, hydraulic lift operations, tool drops, chemical exposure – our tiles handle the full spectrum of trade garage demands.

MOT Testing Stations: Professional appearance for customer-facing areas combined with durability for testing bay requirements.

Vehicle Dealership Service Bays: Premium appearance that maintains showroom standards despite heavy service use.

Fleet Maintenance Facilities: Multi-bay installations handling continuous commercial vehicle traffic.

Fire Station Apparatus Bays: Heavy appliance weight, rapid deployment requirements, decontamination procedures.

PVC Tiles vs Alternatives: Honest Comparison

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch & blend	Repaint
Reversible	Yes	No	No	No
10-Year Cost	Low	Medium-High	High	High (recoats)

Maintenance & Cleaning Protocol

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
Rinse if heavy degreaser used
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar. For stubborn stains, apply degreaser and agitate with stiff brush before rinsing.

What to Avoid: Concentrated acetone (extended exposure), MEK, aggressive paint strippers.

Cost Per Square Metre & ROI Analysis

Material Cost:

7mm tiles: £15.90 per tile = £63.60 per m² (4 tiles)
10mm tiles: £22.90 per tile = £91.60 per m²

Total Installed Cost Comparison (per m²):

PVC Interlocking (DIY install)	£65-95
Epoxy Coating (professional)	£40-80 + downtime cost
Resin Flooring (professional)	£80-150 + downtime cost
Industrial Paint (professional)	£25-45 + frequent recoating

ROI Factors:

Zero downtime: No lost revenue during installation
10-year warranty: Predictable long-term costs
DIY installation: No contractor labour costs
Section repair: Replace damaged tiles, not entire floors

Frequently Asked Questions

What does the 20-tonne load rating actually mean?

The 20-tonne point load rating means each tile can support 20 tonnes of concentrated weight through a small contact area (10mm diameter test indentor). This handles vehicle jacks, lift pads, and heavy equipment without compression damage. The rating is independently verified to BS EN ISO 24344 standards.

Can I install these tiles over existing concrete without preparation?

Yes. Our tiles install directly over existing concrete, painted floors, or even old tiles. Simply sweep clean and lay. No grinding, priming, or moisture testing required. The rigid tile structure bridges minor imperfections up to 3mm.

How long does installation take for a typical garage?

A standard 50m² commercial garage bay takes 2-3 hours with two people. No specialist tools required – tiles click together by hand. Cutting requires only a utility knife. You can drive on the floor immediately after installation.

Are these tiles resistant to oil and brake fluid?

Absolutely. The closed-cell PVC construction provides complete barrier protection against all automotive fluids including engine oil, transmission fluid, brake fluid, coolant, and diesel. Fluids stay on the surface for easy cleanup rather than penetrating the material.

What's the difference between 7mm and 10mm thickness?

Both carry the same 20-tonne load rating. The 10mm version provides additional impact absorption for heavy tool drops, increased anti-fatigue properties for standing work, and better performance bridging uneven subfloors. Choose 10mm for intensive commercial use; 7mm for lighter applications.

Do the tiles meet fire safety regulations?

Yes. Our tiles are Bfl-s1 rated to EN 13501-1, meaning limited fire spread contribution and minimal smoke production. This satisfies Building Regulations for commercial premises and meets typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the damaged tile – it takes under 2 minutes. Lift the surrounding tile edges, remove the damaged tile, and click in a replacement. No contractors, no curing, no disruption. This is a major advantage over epoxy and resin systems where damage requires professional repair.

Are these tiles slippery when wet or oily?

No. The textured surface achieves R10 slip resistance rating to DIN 51130, which tests slip resistance on oily surfaces. The surface maintains grip even when contaminated with fresh oil spills – significantly safer than polished concrete or worn epoxy.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with proper documentation

Ready to transform your commercial garage? Select your thickness and colour above, or contact us for bulk pricing on larger projects.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 6 days.

Concrete Floor Covering Tiles - Direct Overlay System

Concrete Floor Covering Tiles - Direct Overlay System

(432)

From £15.90 £19.88

-20%

Heavy-Duty 10mm PVC Floor Tiles – Engineered for Concrete floor restoration

When concrete floor restoration environments demand flooring that withstands heavy loads, chemical exposure, and continuous traffic, these 5 tonnes rated interlocking PVC tiles deliver verified performance that standard flooring cannot match. Designed specifically for professional environments where operational reliability is non-negotiable.

✓ 5 tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Cure Installation | ✓ 10-Year Commercial Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm
Load Rating	5 tonnes point load (independently verified)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, brake fluid, coolant, acids, solvents
Temperature Range	-20°C to +60°C continuous use
Weight	2.5kg per tile
Connection System	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Understanding the 5 tonnes Load Rating

Our 5 tonnes point load rating means these tiles withstand concentrated weight from vehicle jacks, heavy equipment, and industrial machinery without compression failure or permanent deformation.

This rating is independently verified to BS EN ISO 24344, measuring resistance to concentrated loads through a 10mm diameter indentor. Testing documentation is available for insurance and HSE compliance requirements.

Practical applications:

Vehicle lift pads and hydraulic jack points
Heavy equipment and machinery bases
Rolling loads from trolleys and carts
Static loads from racking and storage systems

Material Science: Why Virgin PVC Outperforms

Our tiles use 100% virgin PVC in closed-cell construction – here's why this engineering choice matters:

Virgin PVC vs Recycled: Recycled PVC contains unknown additives and degraded polymer chains that reduce chemical resistance and load performance. Virgin material delivers consistent, documented specifications.

Closed-Cell vs Open-Cell: Closed-cell construction creates complete fluid barrier protection. Open-cell structures absorb fluids over time, leading to swelling, odour retention, and structural degradation.

PVC vs Polypropylene: Polypropylene tiles become brittle in cold temperatures and offer lower chemical resistance. PVC maintains flexibility and performance from -20°C to +60°C.

Installation Guide: Zero Downtime Floor Transformation

Unlike epoxy systems requiring 72-hour cure times, our interlocking tiles install directly over existing floors during operational hours.

Installation Process:

Preparation: Sweep floor clean. No grinding, priming, or moisture testing required.
Starting Point: Begin in corner, working outward. Leave 5mm expansion gap at walls.
Connection: Align tiles and press down firmly – interlocks click together without tools.
Cutting: Score with utility knife and snap. No power tools required.
Edge Finishing: Install ramp edges for smooth transitions where required.

Subfloor Compatibility: Concrete (any age), existing tiles, painted floors, even slightly uneven surfaces up to 3mm.

Chemical Resistance: Industrial-Grade Protection

Our closed-cell PVC construction provides complete barrier protection against:

Engine Oil (conventional & synthetic)	✓ Full Resistance
Transmission & Hydraulic Fluid	✓ Full Resistance
Brake Fluid (DOT 3, 4, 5, 5.1)	✓ Full Resistance
Coolant & Antifreeze	✓ Full Resistance
Diesel & Petrol (short exposure)	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance

Slip Rating: R10 Anti-Slip Surface

Our textured surface achieves R10 rating to DIN 51130 – the German standard for measuring slip resistance on inclined surfaces with oil contamination.

What R10 Means:

Safe walking surface at inclination angles of 10-19°
Suitable for areas with occasional water or oil contamination
Meets HSE requirements for commercial environments
Maintains grip even when contaminated with oil films

Fire Rating: Bfl-s1 Commercial Compliance

Our tiles carry Bfl-s1 fire classification to EN 13501-1 – the European standard for construction product fire performance.

B: Limited contribution to fire spread (second-highest rating)
fl: Flooring-specific classification
s1: Minimal smoke production

This rating satisfies Building Regulations for commercial premises and meets insurance specifications for industrial applications.

Applications & Use Cases

Concrete floor restoration: These tiles are specifically engineered for the demands of concrete floor restoration environments, handling the unique combination of loads, chemicals, and traffic patterns these facilities generate.

Additional applications:

Commercial garages and workshops
Warehouse and distribution centres
Factory and production floors
Vehicle maintenance facilities
Industrial storage areas

Comparison: PVC Tiles vs Alternatives

Factor	PVC Interlocking	Epoxy Coating	Resin Floor	Paint
Installation Time	Hours	3-7 days	3-5 days	2-3 days
Cure/Downtime	Zero	72+ hours	48+ hours	24+ hours
DIY Possible	Yes	No	No	Limited
Moisture Tolerance	Excellent	Poor	Moderate	Poor
Repair Method	Replace tiles	Grind & recoat	Patch	Repaint
Reversible	Yes	No	No	No

Maintenance & Cleaning

Routine Cleaning:

Sweep or blow off loose debris
Mop with standard floor cleaner or degreaser
No sealing, waxing, or special treatments required

Heavy Contamination: Pressure washing safe up to 100 bar.

Frequently Asked Questions

What load rating do these tiles support?

These tiles have a verified 5 tonnes point load rating to BS EN ISO 24344, suitable for vehicle jacks, heavy equipment, and industrial machinery.

Can I install over existing concrete without preparation?

Yes. Simply sweep clean and lay directly. No grinding, priming, or moisture testing required. The rigid structure bridges minor imperfections up to 3mm.

How long does installation take?

A 50m² area takes 2-3 hours with two people. No specialist tools required – tiles click together by hand, and cutting requires only a utility knife.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC construction provides complete barrier protection against oils, fuels, brake fluid, coolant, and industrial chemicals. Fluids stay on surface for easy cleanup.

What's the difference between 7mm and 10mm thickness?

Both provide excellent load ratings. 10mm offers additional impact absorption and anti-fatigue properties for heavy industrial use. 7mm suits lighter commercial applications.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying Building Regulations for commercial premises and typical insurance requirements for industrial flooring.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Are these tiles slippery when wet or oily?

No. R10 slip resistance rating to DIN 51130 means the textured surface maintains grip even when contaminated with oil or water.

Why Choose GarageFlooringUK?

UK Stock: Ships from UK warehouse, not overseas
Free Delivery: Mainland UK, no minimum order
Trade Pricing: Competitive rates for commercial quantities
Technical Support: Genuine expertise, not call centre scripts
10-Year Warranty: Commercial use coverage with documentation

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 6 days.

Concrete Floor Covering Tiles - Direct Overlay System

(225)

From £19.90

Concrete Floor Covering Tiles – Professional-Grade UK Flooring

Transform your concrete overlay environment with these 5 tonnes rated heavy-duty PVC interlocking floor tiles. Engineered for demanding UK commercial and industrial applications where damaged floor solution performance is essential.

✓ 5 Tonnes Load Rating | ✓ Oil & Chemical Resistant | ✓ Zero Downtime Installation | ✓ 10-Year Warranty | ✓ Free UK Delivery

Technical Specifications

Tile Dimensions	500mm × 500mm (4 tiles per m²)
Thickness	10mm heavy-duty
Load Rating	5 tonnes point load (BS EN ISO 24344)
Material	Virgin PVC, closed-cell construction
Surface Finish	Anti-slip textured (R10 rated to DIN 51130)
Fire Rating	Bfl-s1 (EN 13501-1 compliant)
Chemical Resistance	Oils, fuels, hydraulic fluid, coolants, acids
Temperature Range	-20°C to +60°C continuous use
Connection	Precision interlocking – no adhesive required
Warranty	10 years commercial use

Why Choose PVC Tiles for Concrete Overlay?

Traditional flooring solutions like epoxy coatings, resin floors, and concrete treatments all share common problems: lengthy cure times, professional installation requirements, and vulnerability to moisture and movement. Our interlocking PVC tiles eliminate these issues entirely.

Key Advantages

Zero downtime: Install and use immediately – no 72-hour cure waiting
DIY installation: No specialist contractors required
Any substrate: Install over damaged concrete, existing floors, or new builds
No moisture issues: Works on damp substrates where epoxy fails
Section repairs: Replace individual tiles in minutes, not entire floors
Relocatable: Take your floor investment when you move premises

5 Tonnes Load Rating: Engineering Explained

Our tiles are independently tested to BS EN ISO 24344 – the European standard for measuring concentrated load resistance. The 5 tonnes point load rating means:

Vehicle jacks and stands: Full support for maintenance equipment
Heavy machinery: Industrial equipment bases and feet
Forklift traffic: Continuous operation without damage
Racking systems: Concentrated leg loads from storage systems

Rolling load capacity exceeds 20 tonnes – suitable for fully-loaded forklifts, HGVs, and heavy industrial traffic.

Chemical Resistance for Concrete Overlay Environments

Closed-cell PVC construction provides complete barrier protection against common concrete overlay chemicals:

Engine & Hydraulic Oil	✓ Full Resistance
Brake Fluid & Coolant	✓ Full Resistance
Diesel & Petrol	✓ Full Resistance
Industrial Degreasers	✓ Full Resistance
Battery Acid (dilute)	✓ Full Resistance

Spills stay on surface for easy cleanup. No absorption, no staining, no degradation.

UK Compliance Standards

Fire Rating: Bfl-s1

Classified to EN 13501-1 European fire standards. Meets Building Regulations and insurance requirements for commercial and industrial premises.

Slip Resistance: R10

Rated to DIN 51130 for slip resistance with oil contamination. Meets HSE workplace safety requirements.

Load Certification

BS EN ISO 24344 test certificates available for insurance, HSE inspections, and customer audits.

Installation: Transform Your Floor in Hours

Prepare: Sweep floor clean. No grinding, priming, or moisture testing.
Plan: Calculate coverage (4 tiles per m²). Order 5% extra for cuts.
Install: Start in corner, click tiles together, work outward.
Cut: Score with utility knife and snap. No power tools needed.
Finish: Install ramp edges where required.

Time estimate: 50m² in 2-3 hours with two people.

PVC Tiles vs Epoxy: Complete Comparison

Factor	PVC Tiles	Epoxy Coating
Installation Time	Hours	3-7 days
Cure/Downtime	Zero	72+ hours
DIY Possible	Yes	No
Moisture Tolerance	Excellent	Poor
Repairs	Replace tile (2 min)	Grind & recoat entire floor
Lifespan	20+ years	5-10 years
Relocatable	Yes	No

Cost & ROI Analysis

At approximately £86 per m², initial investment is comparable to quality epoxy systems. However:

No installation labour: DIY saves £20-40/m² in contractor costs
No downtime costs: Immediate use vs 72+ hours facility closure
No recoating: Epoxy needs refinishing every 5-7 years
Spot repairs: Replace damaged tiles, not entire floor

20-year cost comparison: PVC tiles cost approximately half the lifetime cost of epoxy when factoring recoating and repairs.

Maintenance

Daily: Sweep or blow off debris
Weekly: Mop with standard floor cleaner
As needed: Degrease heavy contamination, pressure wash
Never required: No sealing, waxing, or refinishing

Frequently Asked Questions

How do these tiles compare to epoxy flooring?

PVC tiles install in hours vs days, require no cure time, work on damp substrates, and allow section repairs. Epoxy requires professional application, 72+ hour cure, fails on moisture, and needs full recoating when damaged.

Can I install over damaged or cracked concrete?

Yes. The rigid interlocking structure bridges cracks and imperfections up to 3mm. No need to repair existing concrete – simply sweep clean and install directly over it.

What load can these tiles support?

5 tonnes point load (BS EN ISO 24344 verified) and 20+ tonnes rolling load. Suitable for vehicle jacks, heavy machinery, forklifts, and HGV traffic.

Are these tiles oil and chemical resistant?

Yes. Closed-cell PVC provides complete barrier protection against oils, fuels, hydraulic fluid, coolants, and industrial chemicals. Spills stay on surface for easy cleanup.

How long does installation take?

Approximately 50m² in 2-3 hours with two people. No specialist tools or skills required – tiles click together by hand.

Do these tiles meet fire safety regulations?

Yes. Bfl-s1 rated to EN 13501-1, satisfying UK Building Regulations and typical insurance requirements for commercial and industrial premises.

What happens if a tile gets damaged?

Simply replace the individual tile in under 2 minutes. Lift surrounding edges, remove damaged tile, click in replacement. No contractors or curing required.

Can I take the floor with me if I move premises?

Yes. No adhesive means tiles lift up and reinstall elsewhere. Your floor is an asset you own, not a fixture you leave behind.

Are these tiles slippery when wet or oily?

No. R10 anti-slip rating to DIN 51130 means the textured surface maintains grip even when contaminated with water, oil, or other fluids.

Do you offer samples?

Yes! Free samples available so you can assess quality, colour, and texture before ordering. Visit our Free Samples page.

📚 Helpful Resources

📖 The Ultimate Guide to Garage Floor Tiles
Everything you need to know about choosing, installing, and maintaining garage floor tiles.
Read the complete guide →

🧮 Tile Coverage Calculator
Enter your garage dimensions and get an instant quote with pricing.
Calculate how many tiles you need →

🎁 Free Samples
Check the quality and colour before you buy.
Request free samples →

In stock

Receives in 6 days.

By Type

By Application

Sectors

Features

Learn

Support

Products

Free UK Delivery

20+ Year Lifespan

DIY Install

Free Samples

Why Our Tiles Are Different

About This Collection

Need Help Choosing the Right Tiles?

Products

Free UK Delivery

20+ Year Lifespan

DIY Install

Free Samples

Why Our Tiles Are Different

About This Collection

Related Collections

Need Help Choosing the Right Tiles?
